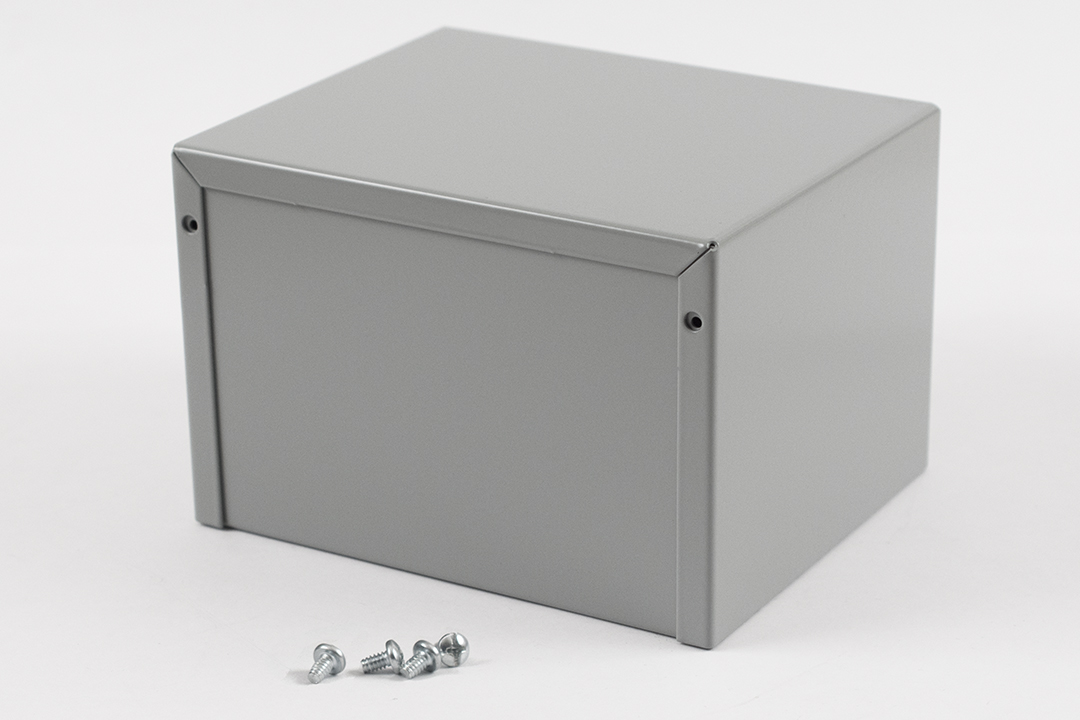

Hammond 1411P 6x5x4" ASA 61 Grey Aluminum Utility Case
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Nominal size 6 x 5 x 4 in (152 x 127 x 102 mm)
- Inner box 5.91 x 4.80 x 3.93 in (150.01 x 121.79 x 99.77 mm)
- Smooth ASA 61 grey powder coat finish (Hammond color GY2)
- Bottom and cover made from 0.04" (1.02 mm) aluminum panels
- Four self-tapping cover screws included; replacements are 1421J6 (pkg of 6, 6-32 x 1/4")
- Factory modification (milling, drilling, printing) available; STEP or IGES solid models
- REACH and RoHS compliant; shipping weight 0.61 lbs (0.28 kg)
The 1411P is a 6 x 5 x 4 in (152 x 127 x 102 mm) utility case from the 1411 series, finished in smooth ASA 61 grey powder coat (Hammond color GY2). It gives electronics builders, OEM engineers and service technicians a ready-finished aluminum housing for instruments, controls and small circuits.
Construction is a simple two-piece assembly: a bottom and a cover, each made from 0.04" (1.02 mm) aluminum panels. Four self-tapping screws are included to fasten the cover, and replacement screws are available as 1421J6, a package of six plated 6-32 x 1/4" Philips head self-tapping screws.
The 6 x 5 x 4 inch footprint is close to cubic, and at 4 inches it is one of the deepest cases in the 1411 line, which leaves room for taller components, stacked boards or wiring bundles. The drawing gives overall assembly dimensions of 152.04 x 126.64 x 101.80 mm (5.99 x 4.99 x 4.01 in) and a usable inner box of 150.01 x 121.79 x 99.77 mm (5.91 x 4.80 x 3.93 in) length by width by height. Shipping weight is 0.61 lbs (0.28 kg).
1411P is REACH and RoHS compliant and ships shrink wrapped. The same size is also offered as 1411PU (unpainted aluminum); 1411FBPBK (black, with wall-mounting flanges) and 1411FBPU (unfinished, with wall-mounting flanges). The enclosure can be factory modified with milling, drilling or printing on a quote basis, and solid models are available in STEP or IGES format.
Ideal For
- Instrument housings
- Utility enclosures for small electronic assemblies
- Custom-machined project cases (drilling, milling, printing)
- Ready-finished grey cases for controls and circuits
Overview
| Type | Utility Case |
| Series | 1411-1412 Series Utility Enclosures (1411 aluminum version) |
| Description | enclosure - ASA 61 grey aluminum; utility |
| Part Number | 1411P |
| Short Description | UTILITY CASE 6.0 X 5.0 X 4.0 |
Dimensions
| Width | 5.00 in (127 mm) |
| Height | 4.00 in (102 mm) |
| Length | 6.00 in (152 mm) |
| Wall Thickness | 1.02 mm [0.04 in] |
| Inner Box Width | 121.79 mm [4.80 in] |
| Inner Box Height | 99.77 mm [3.93 in] |
| Inner Box Length | 150.01 mm [5.91 in] |
| Overall Assembly Width | 126.64 mm [4.99 in] |
| Overall Assembly Height | 101.80 mm [4.01 in] |
| Overall Assembly Length | 152.04 mm [5.99 in] |
| Nominal Size (L X W X H) | 6 x 5 x 4 in (152 x 127 x 102 mm) |
Identifiers
| UPC | 623980486703 |
| UNSPSC | 39121301 |
Related Parts
| Flanged Version, Black | 1411FBPBK |
| Flanged Version, Unfinished | 1411FBPU |
| Alternate Finish (Same Size) | 1411PU (unpainted aluminum) |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.61 lbs (0.28 kg) |
Construction & Finish
| Color | Gray |
| Finish | Smooth ASA 61 grey powder coat (Hammond color GY2) |
| Material | Aluminum |
| CAD Models | Solid models available in STEP or IGES |
| Panel Material | Bottom and cover made from 0.04" aluminum panels |
| Mounting Flanges | None (non-flanged version) |
| Assembly Contents | Bottom, cover and 4 cover screws |
| Replacement Screws | 1421J6 - plated cover screws, package of 6, 6-32 x 1/4" Philips head self-tapping |
| Factory Modification | Milling, drilling, printing etc. available on quotation |
| Cover Screws Included | 4 self-tapping screws |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the 1411P?▾
The nominal size is 6 x 5 x 4 in (152 x 127 x 102 mm). The drawing shows overall assembly dimensions of 152.04 x 126.64 x 101.80 mm (5.99 x 4.99 x 4.01 in) and an inner box of 150.01 x 121.79 x 99.77 mm (5.91 x 4.80 x 3.93 in).
What is it made of and how thick is the metal?▾
The bottom and cover are made from 0.04" aluminum panels; the drawing lists a wall thickness of 1.02 mm [.04 in].
Are screws included?▾
Yes. The purchased assembly includes the bottom, the cover and four self-tapping cover screws. Replacement screws are part number 1421J6, a package of six plated 6-32 x 1/4" Philips head self-tapping screws.
What finish does it have?▾
It is finished in smooth ASA 61 grey powder coat, Hammond color GY2. The listed color is Gray.
Does the 1411P have mounting flanges?▾
No. This is the non-flanged version. Wall-mounting flanged versions of this size are 1411FBPBK (black) and 1411FBPU (unfinished aluminum).
Can the enclosure be customized?▾
Yes. The drawing notes that the enclosure can be factory modified with milling, drilling, printing and similar work on a quote basis, and solid models are available in STEP or IGES.
Related Products

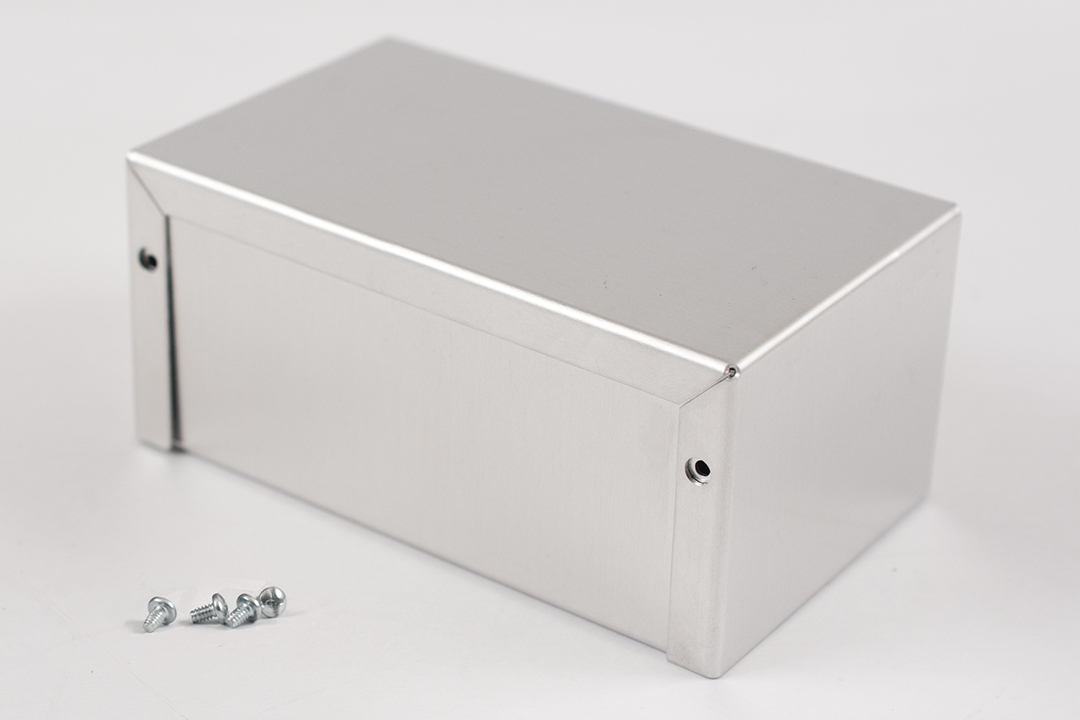

Save 52%1411NU — enclosure - unpainted aluminum; utility
Hammond Manufacturing · 1411NU
Save 52%1411PP — enclosure - ASA 61 grey aluminum; utility
Hammond Manufacturing · 1411PP

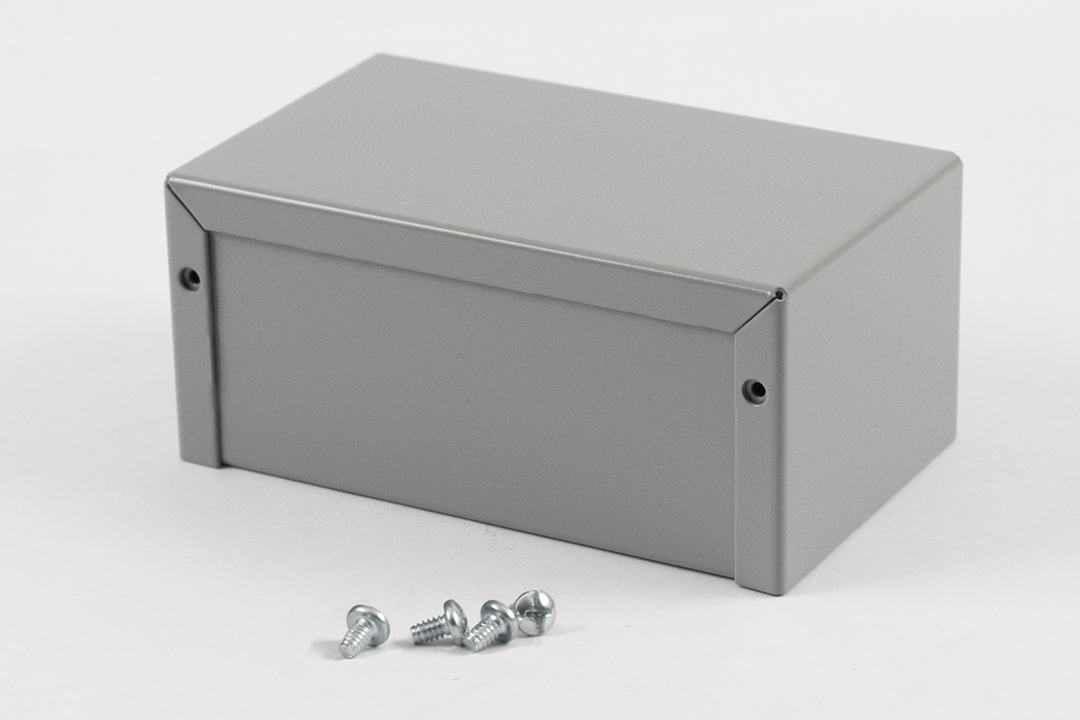

Save 52%1411N — enclosure - ASA 61 grey aluminum; utility
