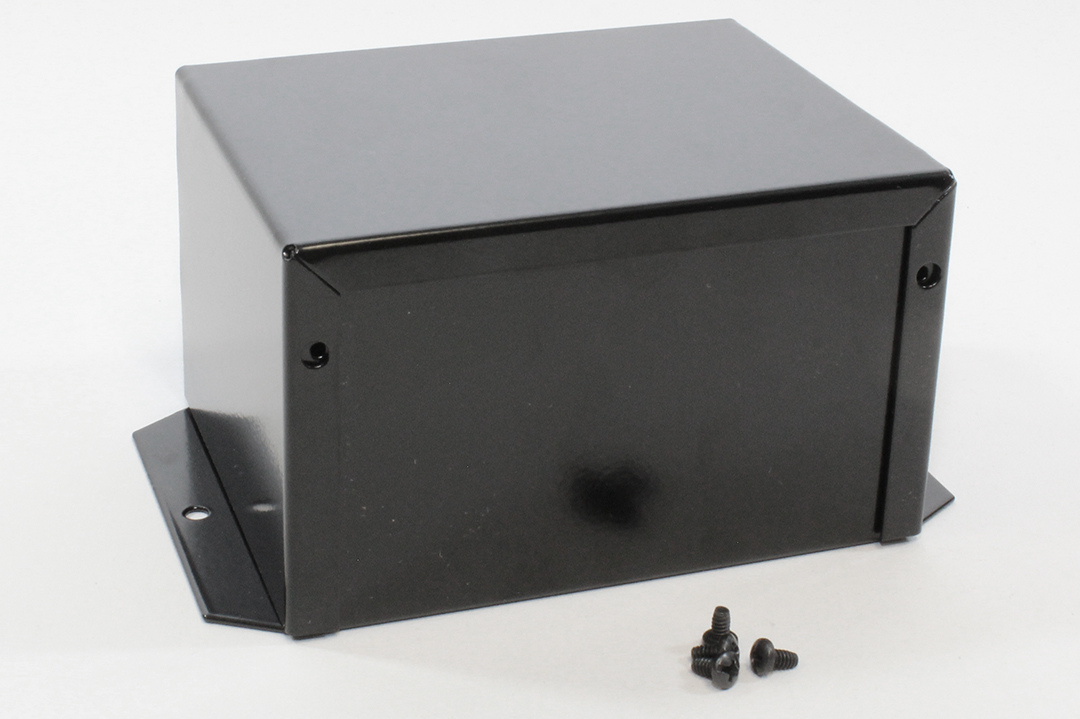

Hammond 1411FBLBK 5×4×3 in Black Flanged Aluminum Utility Case

The 1411FBLBK is a flanged utility case from the 1411 aluminum series, finished in smooth black powder coat (Hammond color BK2). Its bottom carries wall-mounting flanges, so it suits integrators, OEM engineers and facilities teams who need a compact metal housing that fastens directly to a wall or panel. The nominal size is 5 x 4 x 3 in (127 x 102 x 76 mm).

Construction is two pieces: a flanged bottom and a cover, both made from 0.04" (1.02 mm) aluminum panels. Each purchased assembly includes the flanged bottom, the cover and four self-tapping cover screws. Replacement cover screws are available as 1421J6, a package of six 6-32 x 1/4" plated self-tapping screws, and 1421J6BK supplies the same screws in black.

According to the drawing, the assembled box measures 126.64 mm [4.99 in] long, 101.24 mm [3.99 in] wide and 77.67 mm [3.06 in] high, with an overall length of 155.58 mm [6.13 in] across the flanges. Usable inside space is 124.61 mm [4.91 in] long by 96.39 mm [3.80 in] wide by 75.64 mm [2.98 in] high. Shipping weight is 0.75 lbs (0.34 kg).

The black powder coat gives a finished look straight out of the box. If you need cut-outs or markings, the enclosure can be factory modified (milling, drilling, printing), and solid models are available in STEP or IGES for layout work.

The part is RoHS and REACH compliant and ships shrink wrapped. Other versions of the same 5 x 4 x 3 in size in the ordering table are 1411L (aluminum gray), 1411LU (aluminum unfinished), 1411FBLU (aluminum unfinished w/ flanges).
