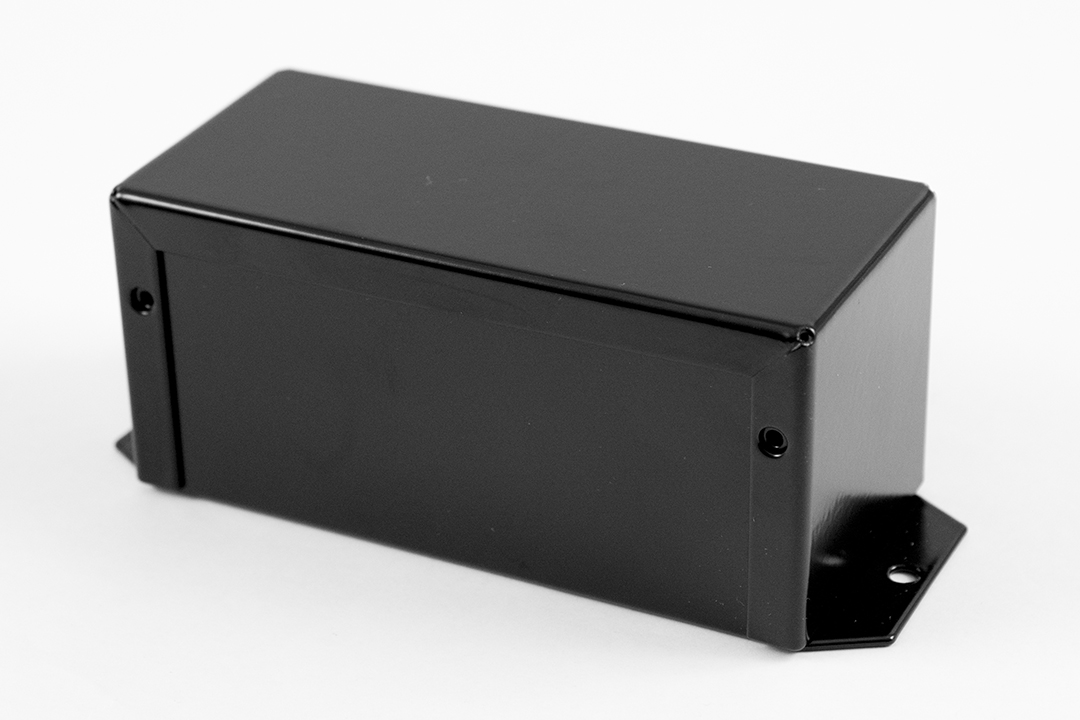

Hammond 1411FBKBK 5x2.2x2.2 in Black Flanged Aluminum Utility Case
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 5.00 in (127 mm) L x 2.20 in (56 mm) W x 2.20 in (56 mm) H aluminum utility case
- Bottom has wall-mounting flanges
- 0.04 in thick aluminum bottom and cover
- Smooth black powder coat finish (Hammond color BK2)
- Four self-tapping cover screws included; replacement screws 1421J6
- Factory modification available; STEP or IGES solid models
- RoHS and REACH compliant
The 1411FBKBK is a black aluminum utility case with wall-mounting flanges from the 1411-1412 Series, measuring 5.00 in (127 mm) long, 2.20 in (56 mm) wide and 2.20 in (56 mm) high. It gives electricians, OEM engineers and hobbyists a compact metal housing that can be fixed directly to a wall or panel through its flanged bottom.
The K size stretches the 2.20 x 2.20 in (56 x 56 mm) cross-section to 5.00 in (127 mm) long, the longest of the 2.2 in wide flanged options in this group.
Both the flanged bottom and the cover are formed from 0.04 in thick aluminum. This version is finished in smooth black powder coat (Hammond color BK2), the painted option offered for the flanged cases.
The purchased assembly includes the flanged bottom, cover and 4 cover screws; the cover fastens with self-tapping screws. Replacement screws are available as 1421J6, a package of six 6-32 Philips head screws. The 1411FBKBK can also be factory modified (milling, drilling, printing), and solid models are available in STEP or IGES format for enclosure layout work.
The same 5.00 x 2.20 x 2.20 in size is also offered as 1411K, 1411KU and 1411FBKU in the other finish and flange combinations. The 1411FBKBK is RoHS and REACH compliant, ships in shrink wrap and has a listed shipping weight of 0.25 lbs (0.11 kg).
Ideal For
- Housing small circuit boards and electronic projects
- Wall- or panel-mounted junction and control boxes
- Enclosing controls, switches and wiring
- OEM and prototype electronics packaging
Mounting
| Mounting Flanges | Yes, wall-mounting flanges on the bottom |
Overview
| Type | Flanged Utility Case |
| Series | 1411-1412 Series Utility Enclosures |
| Part Number | 1411FBKBK |
| Long Description | enclosure -black aluminum; flanged; utility |
| Short Description | UTILITY CASE 5.0 X 2.2 X 2.2 |
| Ordering Table Version | Aluminum · Black w/ Flanges |
Dimensions
| Width | 2.20 in (56 mm) |
| Height | 2.20 in (56 mm) |
| Length | 5.00 in (127 mm) |
| Nominal Size (L X W X H) | 5 in x 2.2 in x 2.2 in (127 mm x 56 mm x 56 mm) |
Identifiers
| UPC | 623980027593 |
| UNSPSC | 39121301 |
Related Versions
| Aluminum, Gray | 1411K |
| Aluminum, Unfinished | 1411KU |
| Aluminum, Black W/ Flanges | 1411FBKBK |
| Aluminum, Unfinished W/ Flanges | 1411FBKU |
Hardware & Contents
| Replacement Screws | 1421J6 (Pkg. of six 6-32 Philips head screws) |
| Cover Screws Included | 4 self-tapping screws |
| Purchased Assembly Includes | Flanged bottom, cover and 4 cover screws |
| Accessory: Black Cover Screws | Pkg 6, 6-32 x 1/4" self-tapping screws |
| Accessory: Plated Cover Screws | Pkg 6, 6-32 x 1/4" self-tapping screws |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.25 lbs (0.11 kg) |
Construction & Finish
| Color | Black |
| Finish | Smooth black powder coat (Hammond color BK2) |
| Material | Aluminum |
| Material Thickness | 0.04 in (bottom and cover) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Customization & Documentation
| Solid Models | Available in STEP or IGES |
| Factory Modification | Available (milling, drilling, printing etc.) |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the 1411FBKBK?▾
The 1411FBKBK is 5.00 in (127 mm) long, 2.20 in (56 mm) wide and 2.20 in (56 mm) high.
Does the 1411FBKBK have mounting flanges?▾
Yes. The 1411FBKBK has a flanged bottom with wall-mounting flanges.
What is it made of and how is it finished?▾
The bottom and cover are 0.04 in thick aluminum. Smooth black powder coat (Hammond color BK2).
What is included?▾
The purchased assembly includes the flanged bottom, cover and 4 cover screws. Replacement screws are part number 1421J6, a package of six 6-32 Philips head screws.
Is the 1411FBKBK available in other finishes?▾
Yes. This size is also listed as 1411K (aluminum, gray), 1411KU (aluminum, unfinished), 1411FBKBK (aluminum, black with flanges) and 1411FBKU (aluminum, unfinished with flanges); the 1411FBKBK is the aluminum · black w/ flanges version.
Can the case be customized?▾
Yes. It can be factory modified with milling, drilling, printing and similar work, and solid models are available in STEP or IGES.
