Hammond 1401P 14x10x5-Inch Steel Instrument Enclosure, Black Front
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 14 in W x 10 in D x 5 in H (356 x 254 x 127 mm) instrument case
- Steel top and bottom halves painted RAL 7032
- 0.064 in thick aluminum front and rear panels, easy to machine
- Textured black front panel; RAL 7032 rear panel vented top and bottom
- Includes eight 6-32 nickel plated Philips screws and self-adhesive rubber feet
- IP32 rated; RoHS and REACH compliant
- Replacement screws available as 1421J6 (package of 6)

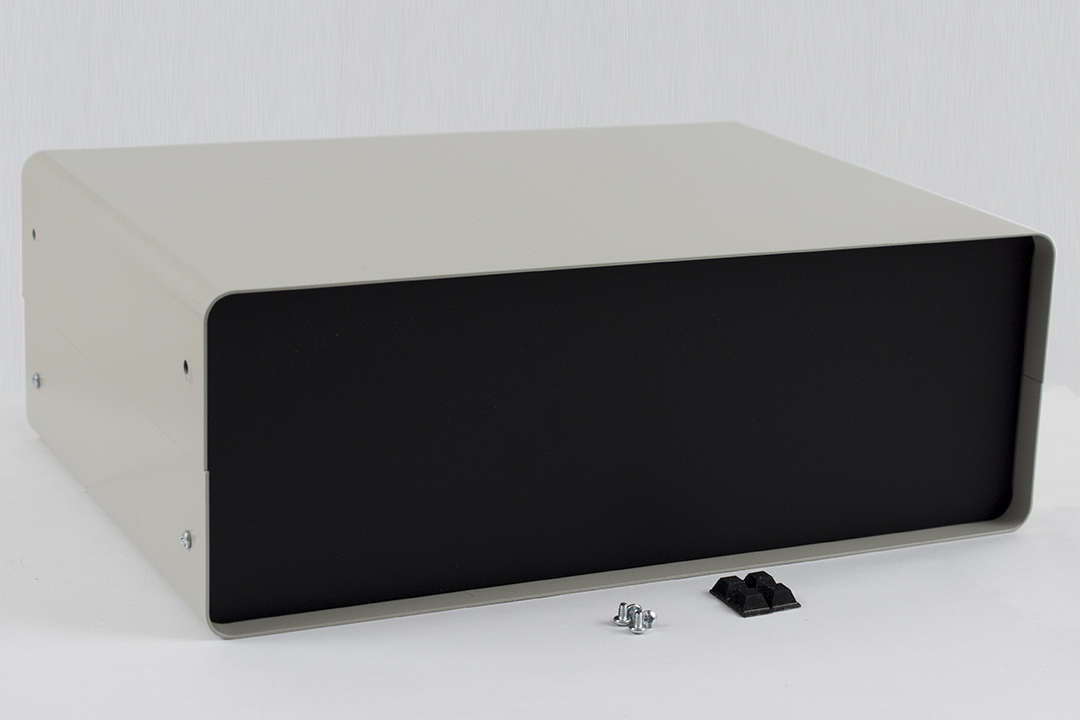

The 1401P is a metal instrument enclosure measuring 14 in wide, 10 in deep and 5 in high (356 x 254 x 127 mm), built for electronics designers, test-equipment builders and OEM engineers who need a finished bench-top case with easy-to-machine panels. The 1401P is a wide, low case at 14 in wide, 10 in deep and 5 in high, a desktop-friendly shape for equipment that is broad rather than tall.
The top and bottom halves are steel painted RAL 7032 (listed as gray; the series sheet describes it as beige powder coat). The 1401P drawing specifies a 20 gauge steel body, while the series sheet lists 18 gauge steel top and bottom halves. Front and rear panels are 0.064 in thick aluminum that is easy to machine: the front is finished in textured black and the rear panel is painted RAL 7032 and vented at top and bottom for airflow.
Assembly hardware is included: eight 6-32 Philips nickel plated screws and four self adhesive rubber feet. Extra screws are available as 1421J6, a package of six #6-32 x 1/4 sheet metal screws.
The 1401P is rated IP32 for indoor use, is RoHS and REACH compliant, and ships shrink wrapped at 6.46 lbs (2.93 kg). The enclosure can be factory modified (milling, drilling, printing) and solid models are available in STEP or IGES.
Ideal For
- Bench-top test and measurement instruments
- Electronics project and prototype housings
- Control and power supply units with front-panel controls
- Custom panels machined for meters, switches and connectors
Overview
| Type | Instrument Enclosure |
| Series | Instrument Enclosure (1401 Series) |
| Description | enclosure - metal instrument; gray w/ black front panel |
| Part Number | 1401P |
| Short Description | INSTRUMENT CASE 14X10X5 |
Dimensions
| Depth | 10.00 in (254 mm) |
| Width | 14.00 in (356 mm) |
| Height | 5.00 in (127 mm) |
| Size (L X W X H) | 14 in x 10 in x 5 in (356 mm x 254 mm x 127 mm) |
Identifiers
| UPC | 623980484907 |
| UNSPSC | 39121301 |
Included Hardware
| Feet | Four self adhesive rubber feet |
| Screws | Eight 6-32 Philips nickel plated screws |
| Replacement Screws | 1421J6 (#6-32 x 1/4 Philips head sheet metal screws, package of 6) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 6.46 lbs (2.93 kg) |
Construction & Finish
| Color | Gray (RAL 7032) |
| Material | Steel w/ Aluminum End Panels |
| CAD Models | STEP or IGES |
| Rear Panel | Painted RAL 7032 (beige), vented at top and bottom |
| Front Panel Finish | Textured black |
| Body (Part Drawing) | 20 gauge steel, painted RAL 7032 |
| Front & Rear Panels | 0.064 in thick aluminum, easy to machine |
| Factory Modification | Available (milling, drilling, printing etc.) |
| Top & Bottom Halves (Series Sheet) | Heavy duty 18 gauge steel, RAL 7032 beige powder coat |
Environmental & Protection
| IP Rating | IP32 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the 1401P?▾
The 1401P is 14 in wide, 10 in deep and 5 in high (356 mm x 254 mm x 127 mm). The part page lists the size as 14 in x 10 in x 5 in (356 mm x 254 mm x 127 mm).
What are the front and rear panels made of?▾
Both are 0.064 in thick aluminum. The front panel is finished in textured black and the rear panel is painted RAL 7032 and vented at top and bottom.
What hardware is included?▾
The enclosure comes with eight 6-32 Philips nickel plated screws and four self adhesive rubber feet.
Where can I get replacement screws?▾
Replacement screws are part number 1421J6, a package of six #6-32 x 1/4 Philips head sheet metal screws.
What is the IP rating of the 1401P?▾
It is rated IP32.
