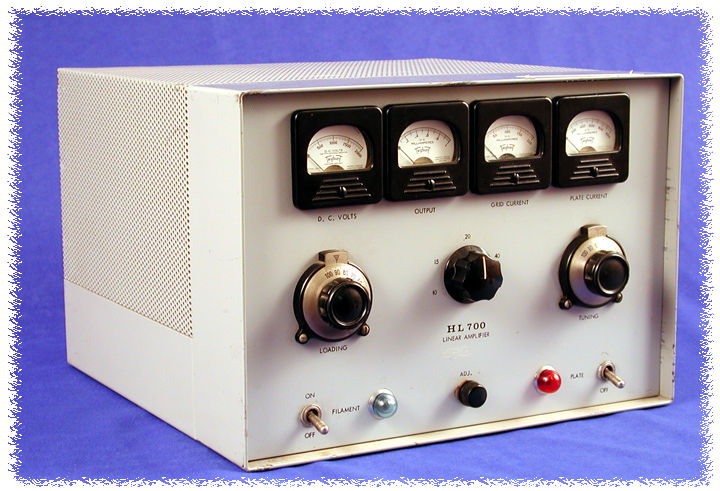

Linear Amplifier HL-700 Series
Features
- ■BAND COVERAGE 75 Meter, 40 Meter, 20 Meter, 15 Meter & 10 Meter Amateur Bands
- ■75 Meter, 40 Meter, 20 Meter, 15 Meter & 10 Meter Amateur Bands
- ■TUBE COMPLIMENT Choice of either (4) 811A Triodes or (4) 572-B Triodes Operated AB2 - Grounded Grid Service
- ■Choice of either (4) 811A Triodes or (4) 572-B Triodes
- ■Operated AB2 - Grounded Grid Service
- ■MODE AND DUTY CYCLE SSB (700 Watts Input) - dependant on supply voltage. CW (700 Watts Input) - dependant on supply voltage.
- ■SSB (700 Watts Input) - dependant on supply voltage.
- ■CW (700 Watts Input) - dependant on supply voltage.
- ■DRIVE POWER 75-100 Watts
- ■75-100 Watts
- ■COOLING Forced Air
- ■Forced Air
- ■ALC None
- ■None
- ■TUNING Vernier tuning 0 - 100 dial skirt log for easy resetting
- ■Vernier tuning
- ■0 - 100 dial skirt log for easy resetting
- ■INPUT CIRCUIT Untuned
- ■Untuned
- ■OUTPUT CIRCUIT Pi-Network
- ■Pi-Network
- ■ANTENNA RELAY None (supplied externally) - amplifier is designed to follow an exciter
- ■None (supplied externally) - amplifier is designed to follow an exciter
- ■METERING (4) Simpson Meters High Voltage, Grid Current, Plate Current & Relative Output
- ■(4) Simpson Meters
- ■High Voltage, Grid Current, Plate Current & Relative Output
- ■FINISH Smooth Grey Baked Enamel
- ■Smooth Grey Baked Enamel
