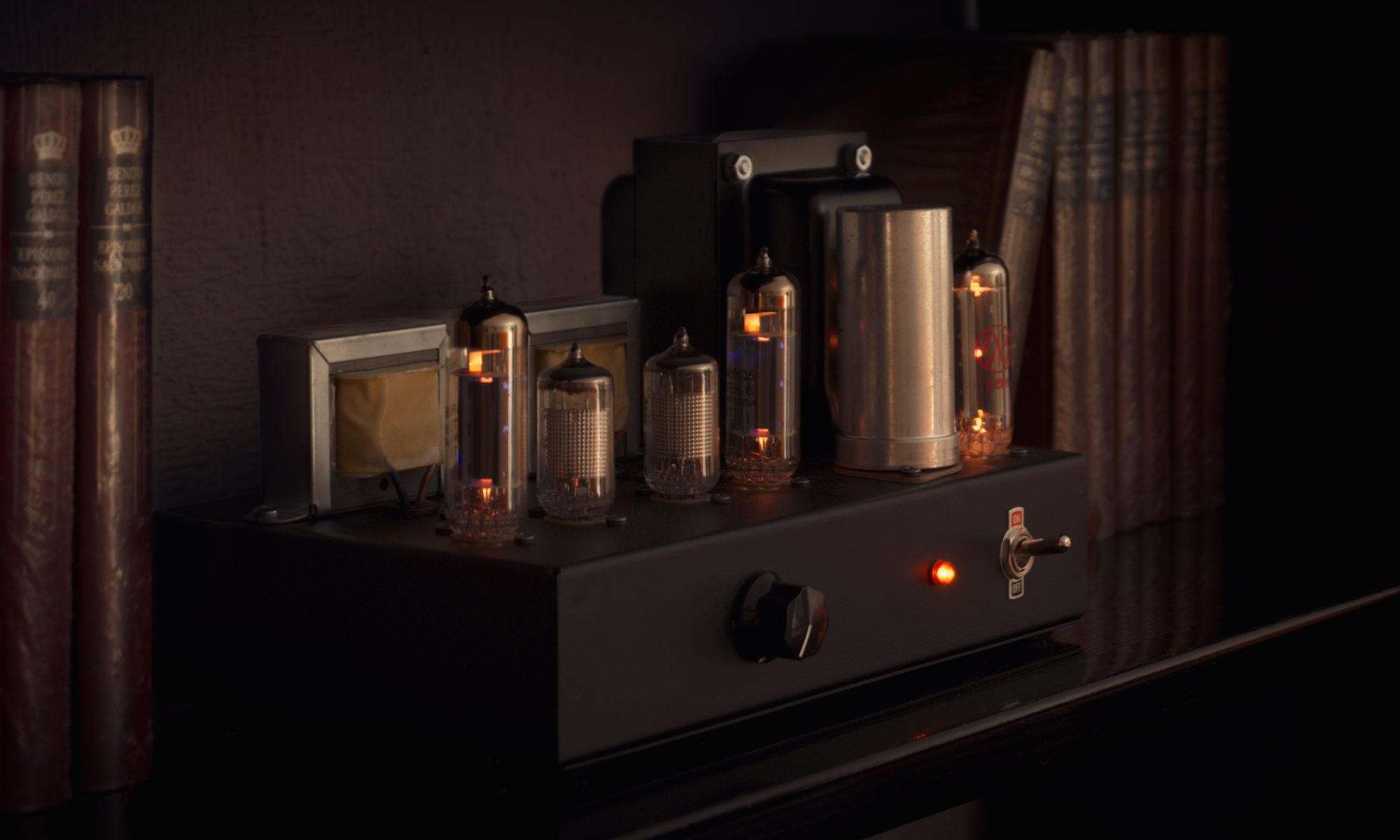

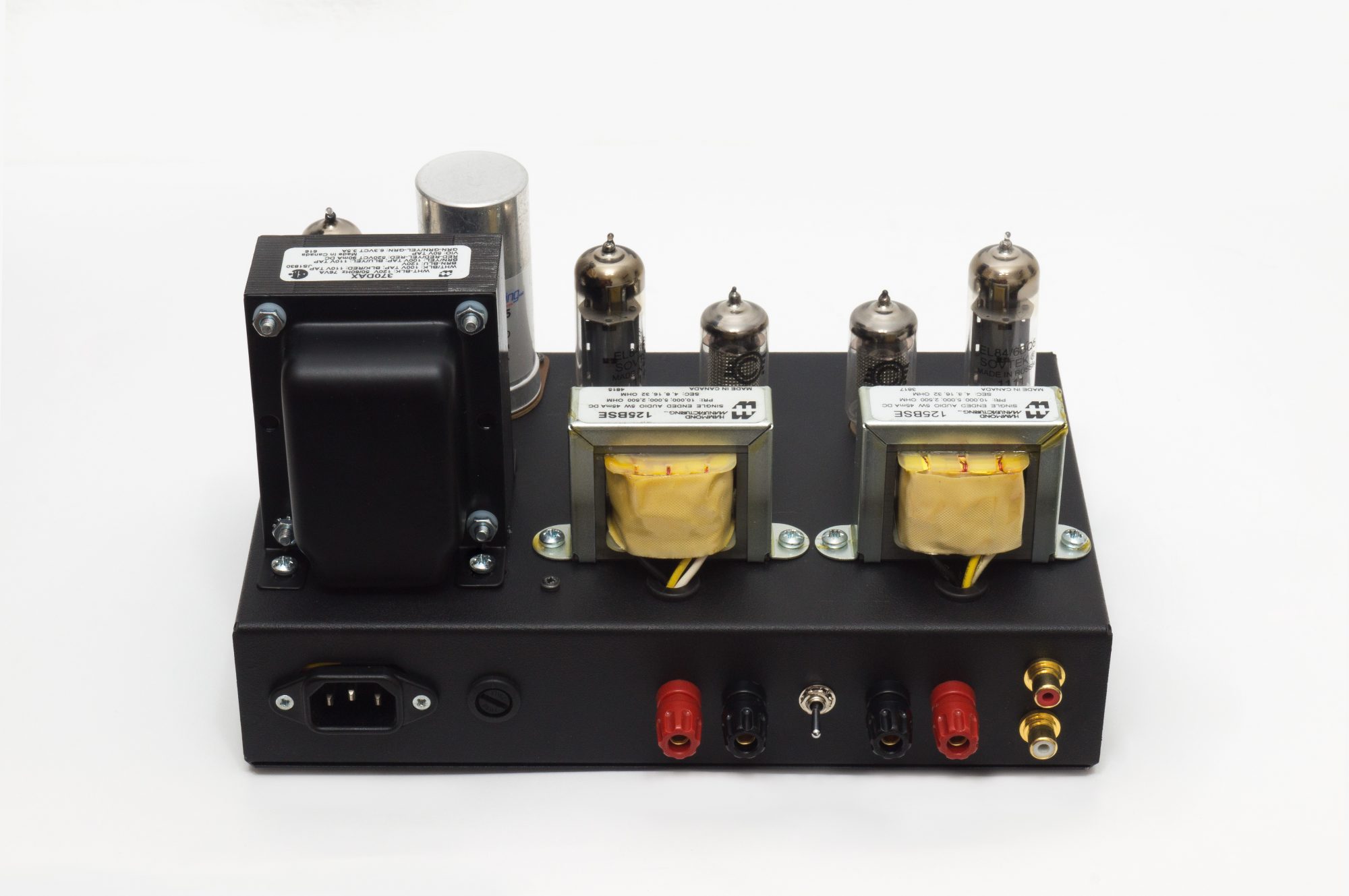

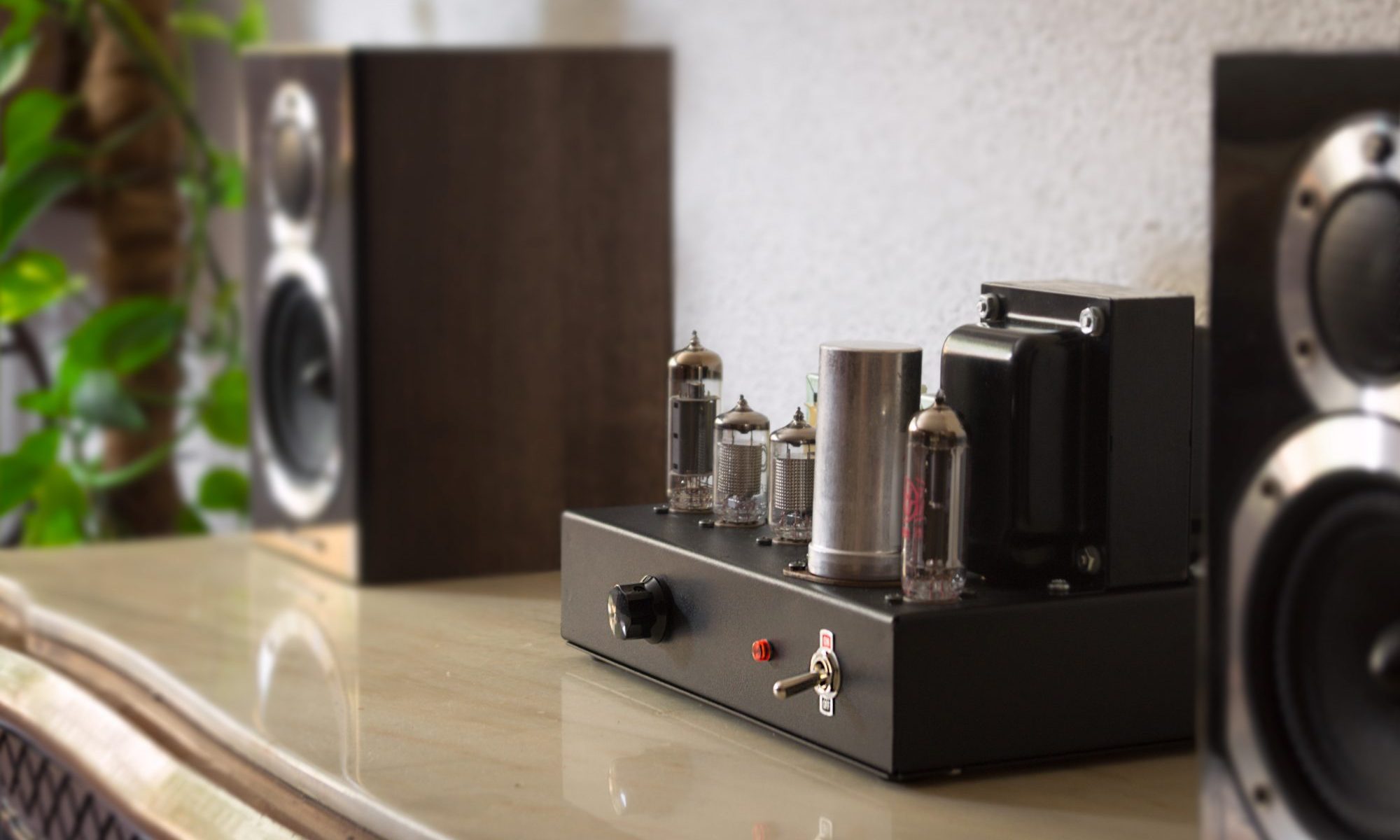

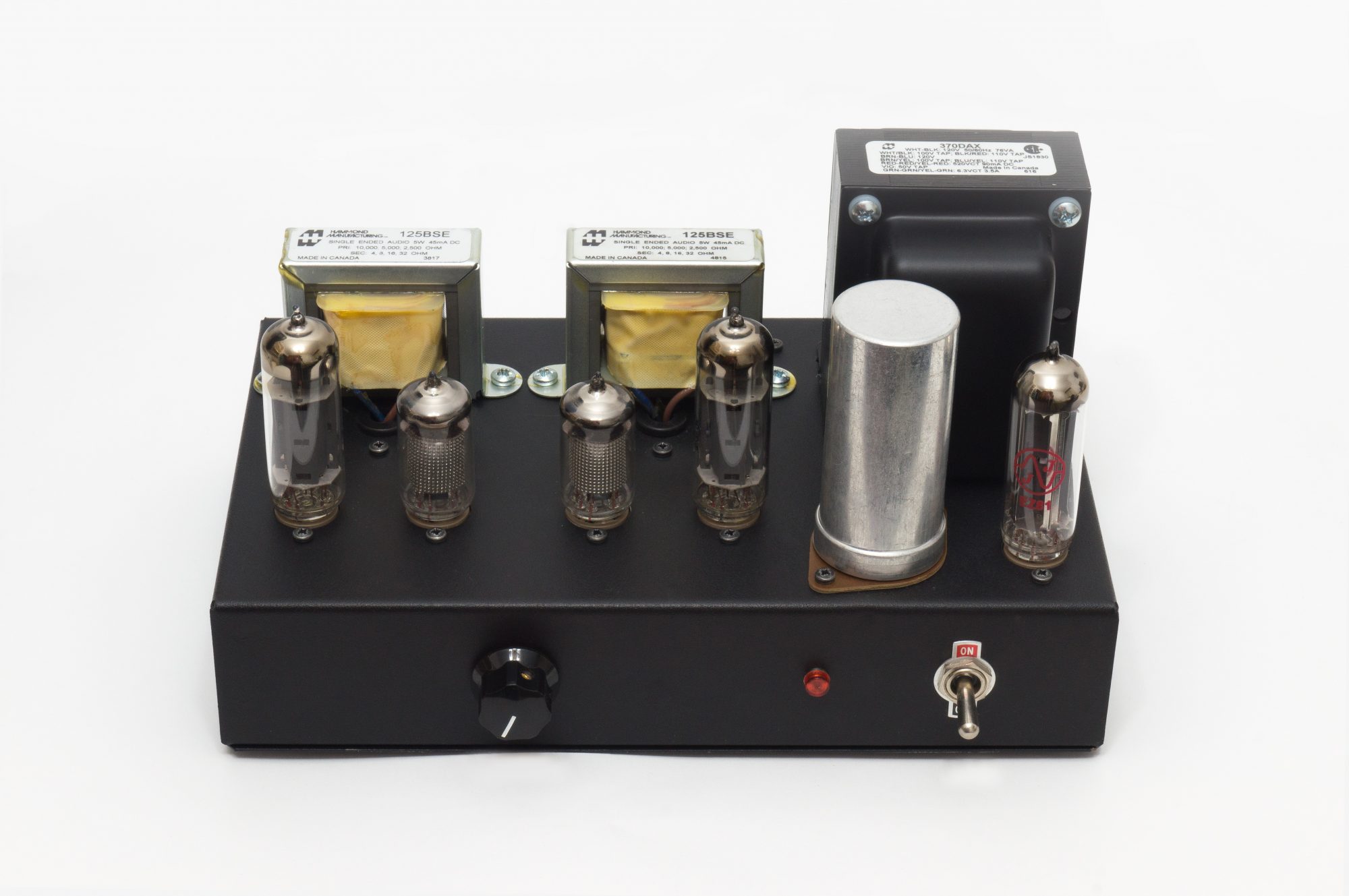

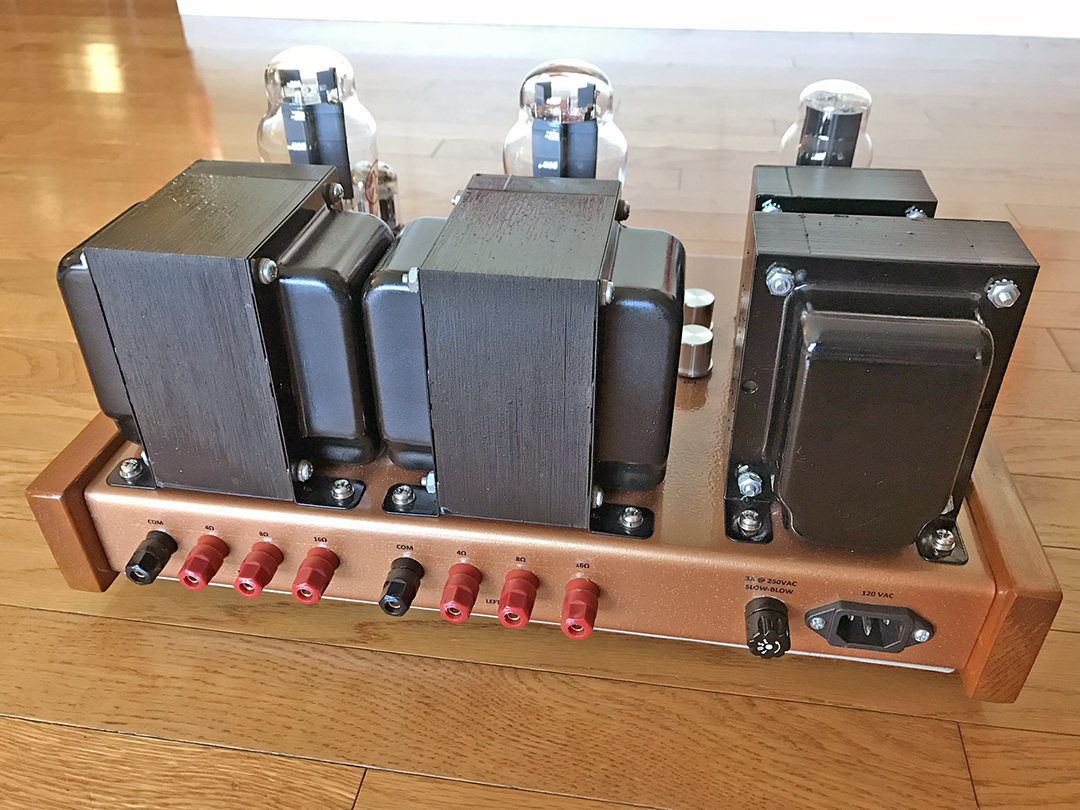

Heathed Cathode - Ricardo Pastor

Output transformer (2): 125BSE

Power transformer: 370DAX

Chassis: 1441-16BK3

Andriy Lomako

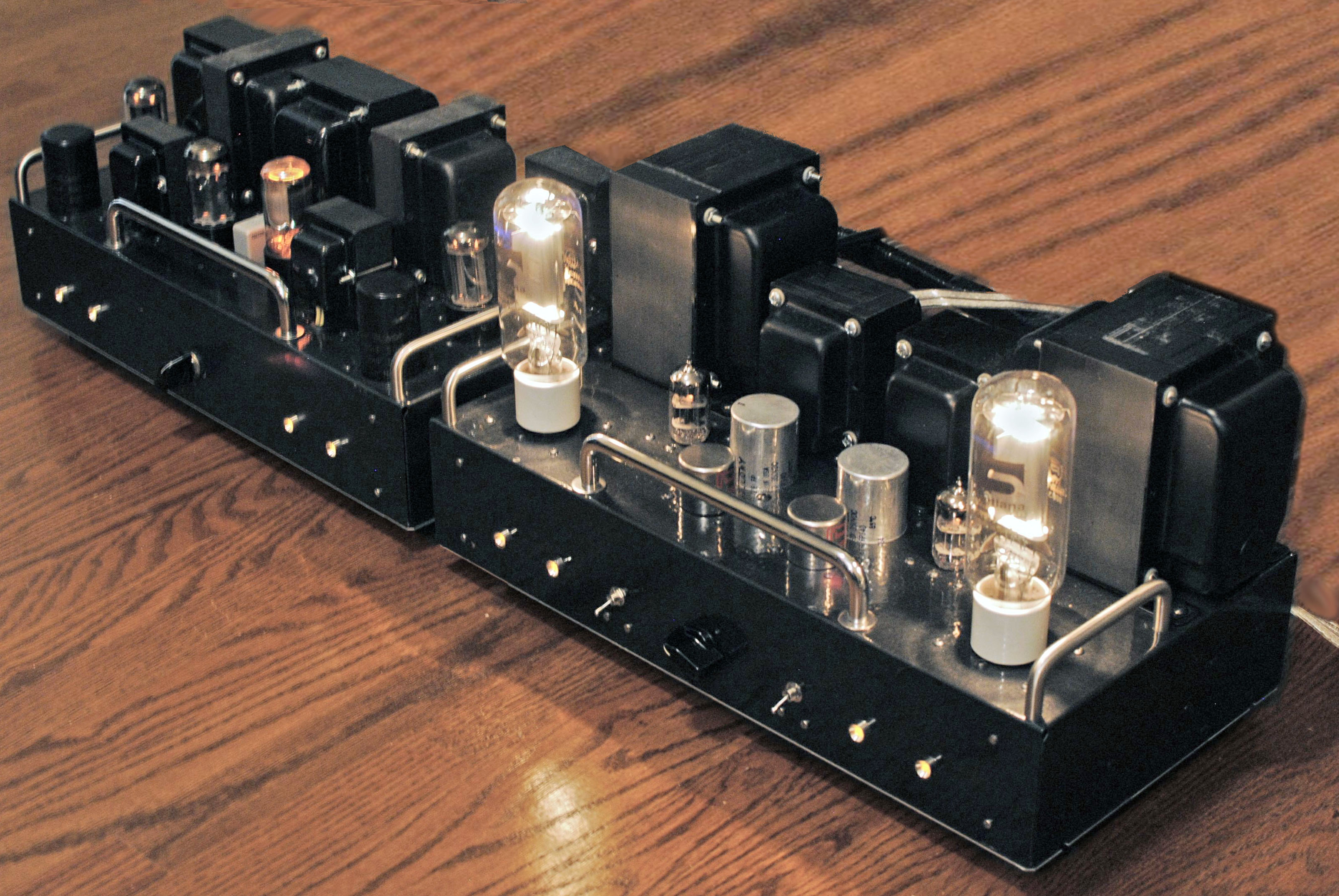

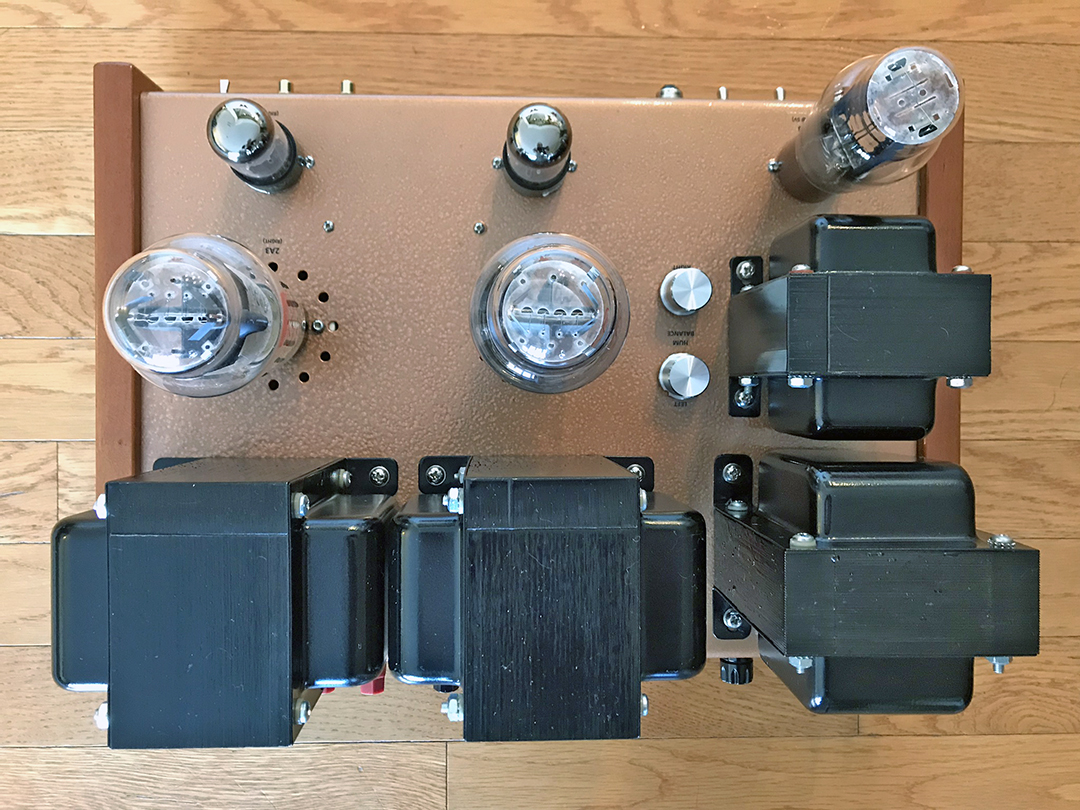

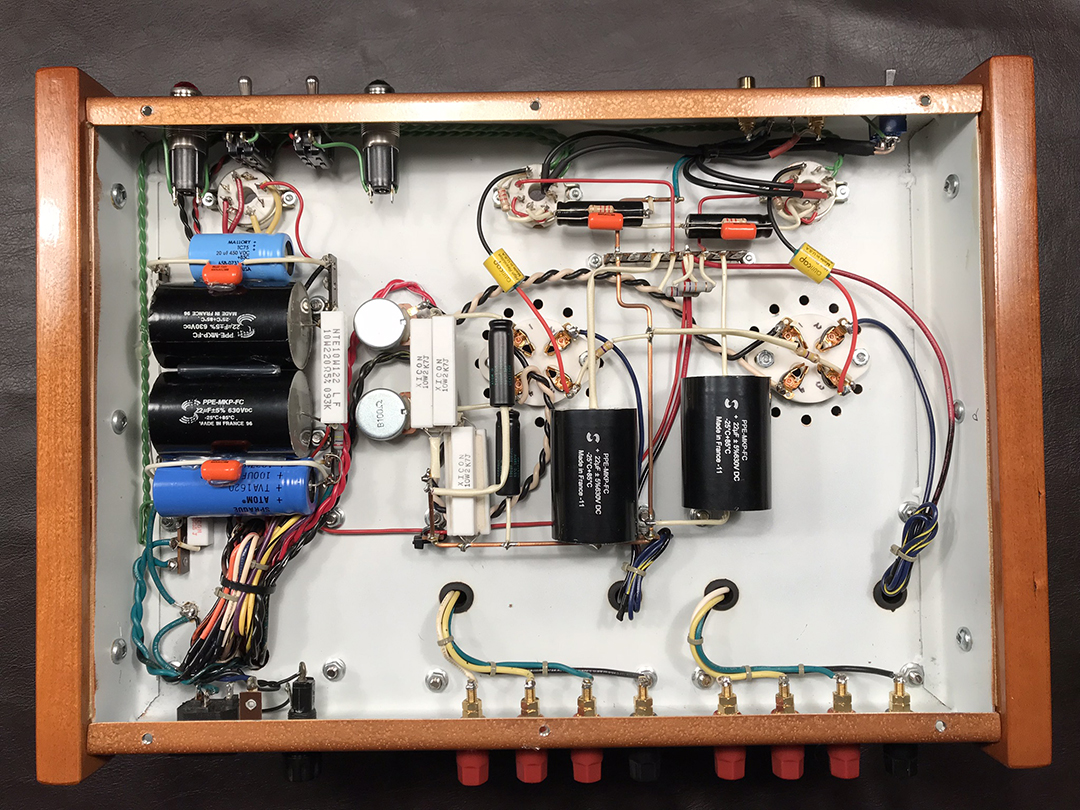

Just found that you have a gallery with images of the designs done with your products. My PAROVOZ SV811-10 transformer coupled power amplifier may have the largest count of your wound products, they are:

Plate: 714 Plate chokes: 2x 193G Driver power: 270CAX Driver filter choke: 157J Bias and safety power: 263AX Driver heater: 166J6 5AR4 heater: 167N6 Grid bias filter choke: 155C Total for power supply: Nine wound components

Output: 2x 1629SE Driver: 2x 126B SV811-10 heater power: 2x 167N6 Driver 2nd filter choke: 2x 156G SV811-10 heater rectifier choke: 4x 156B Total for amplifier: Twelve wound components

Total for design: Twenty One HAMMOND wound components.

Tubes are: 1x 5AR4, 2x 5C4S, 1x SG2S, 2x 6S45P, 2x SV811-10.

I like the sound very much, thank you for staying in this business!

Blair (VE3ZBM)

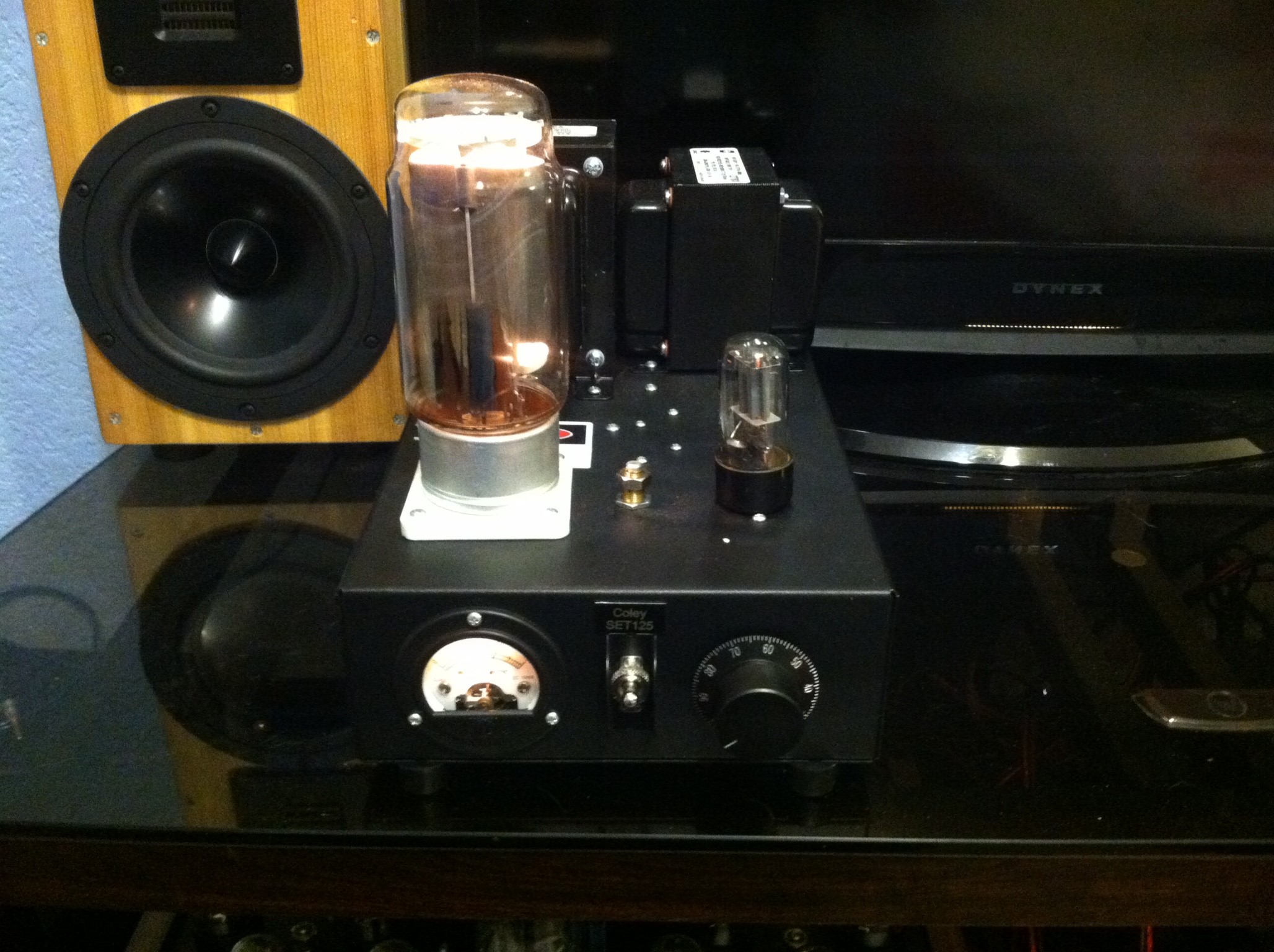

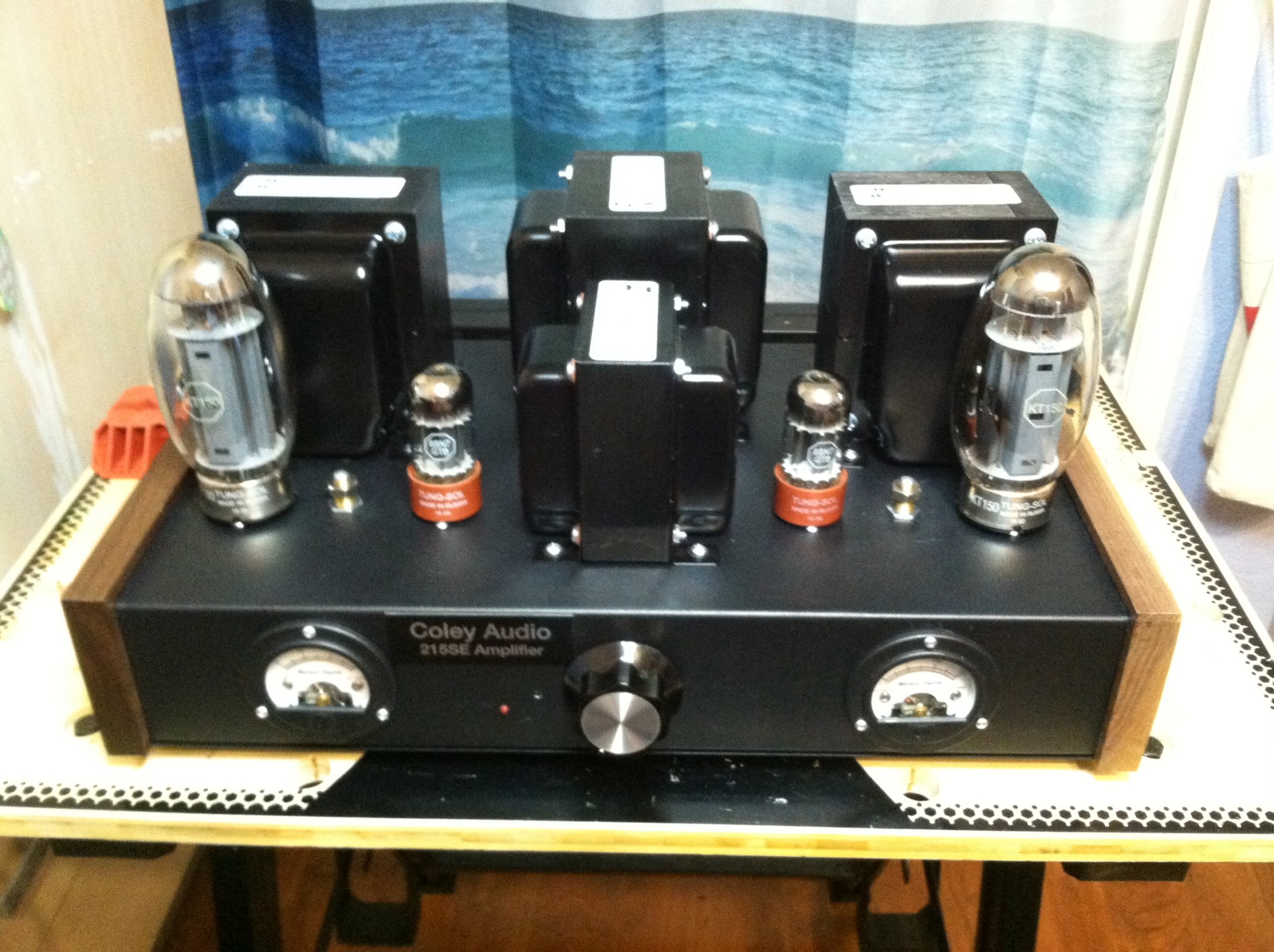

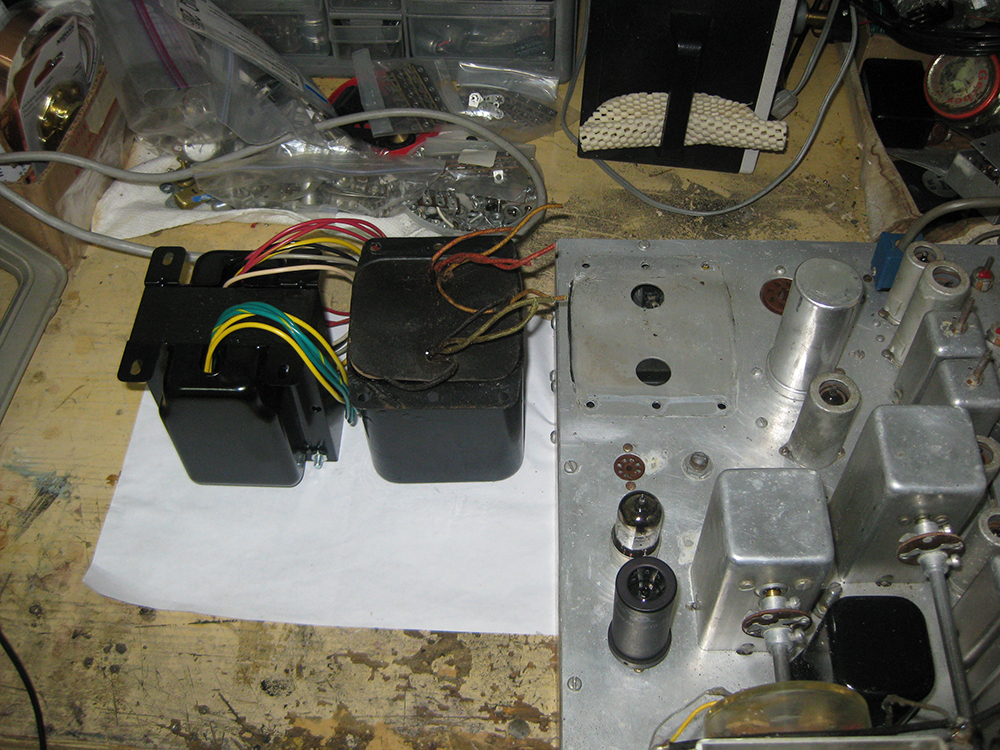

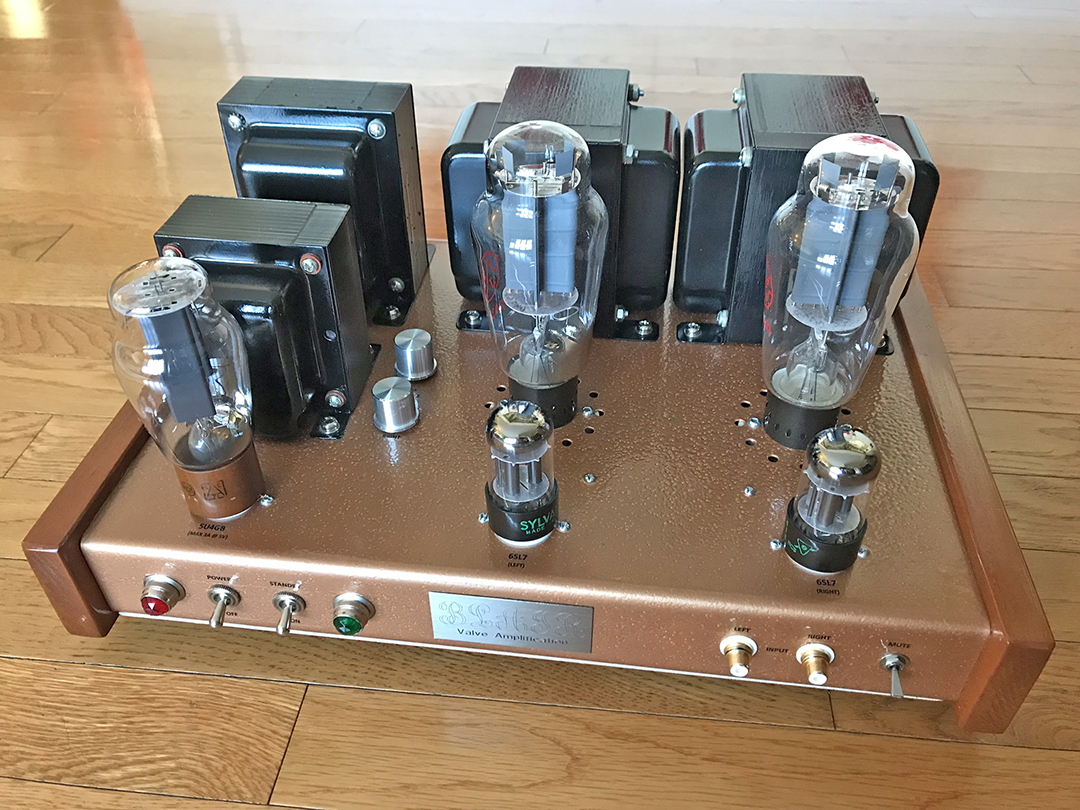

Single-ended stereo triode amp

Power Transformer: 302AX

Output Transformer: 1627SEA

Tubes: (1) RCA 5R4GY, (2) Sylvania 6SL7GT, and (2) 2A3 or 300B

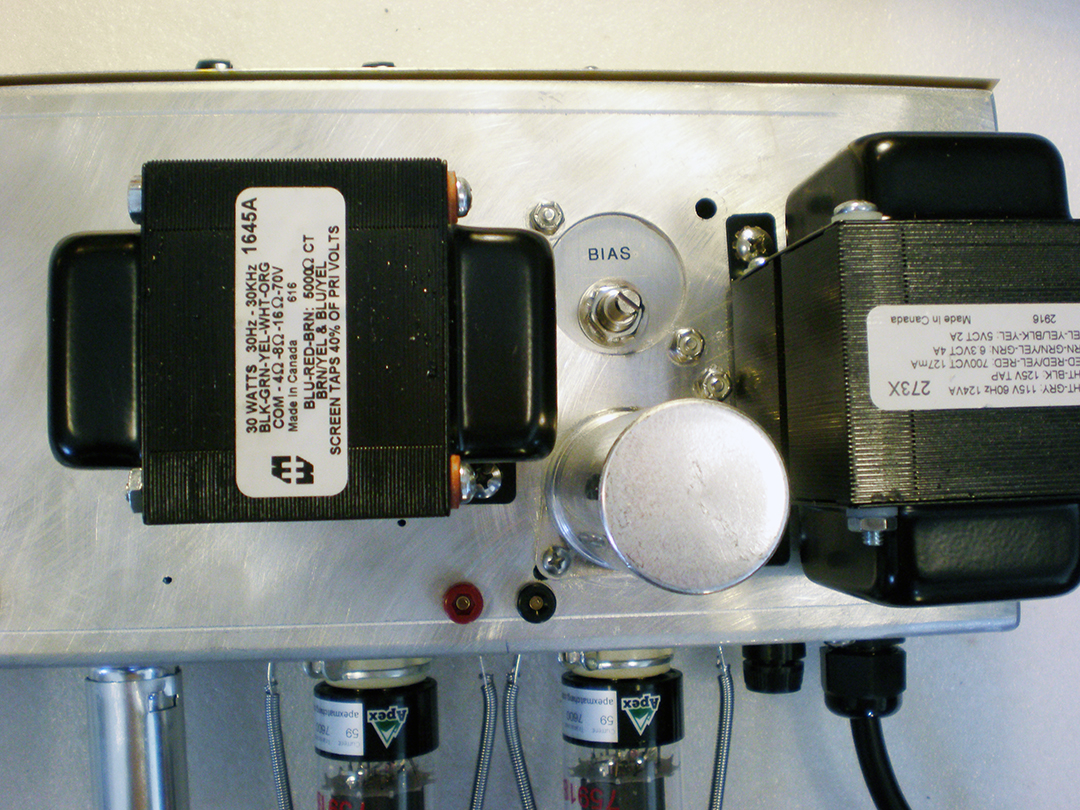

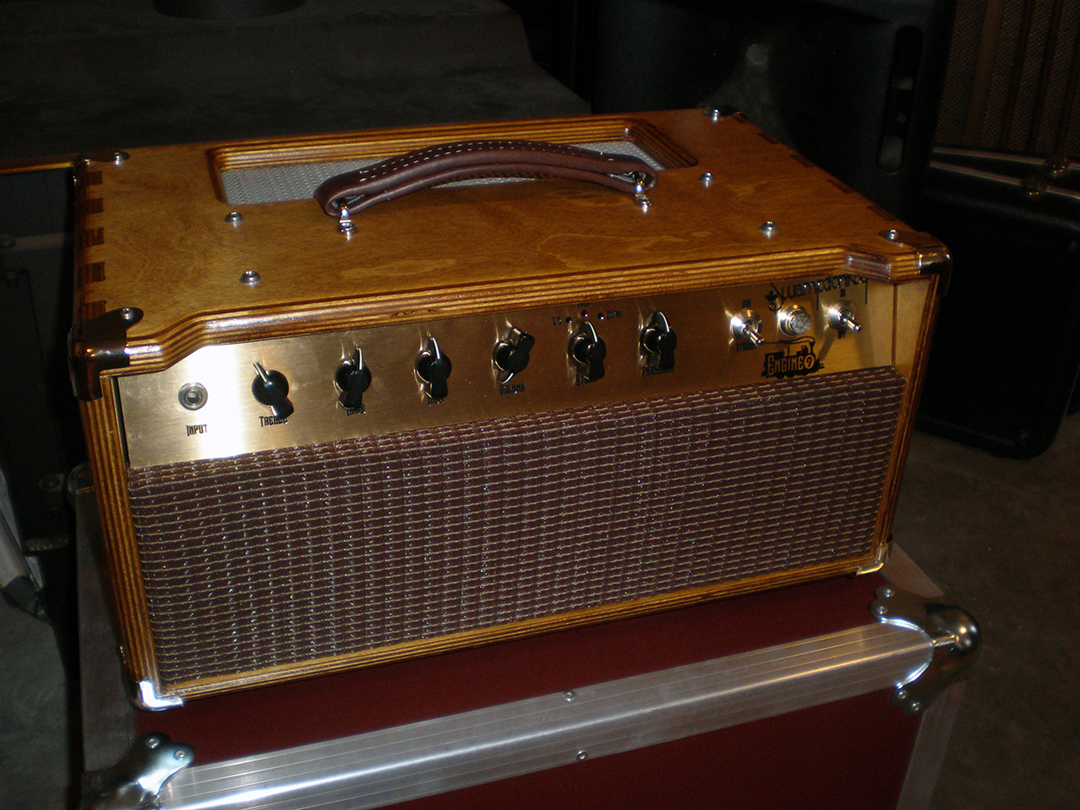

Swampdonkey Engine9 Guitar Amplifier - www.swampdonkeyamps.com

Submitted by: Chris Czech

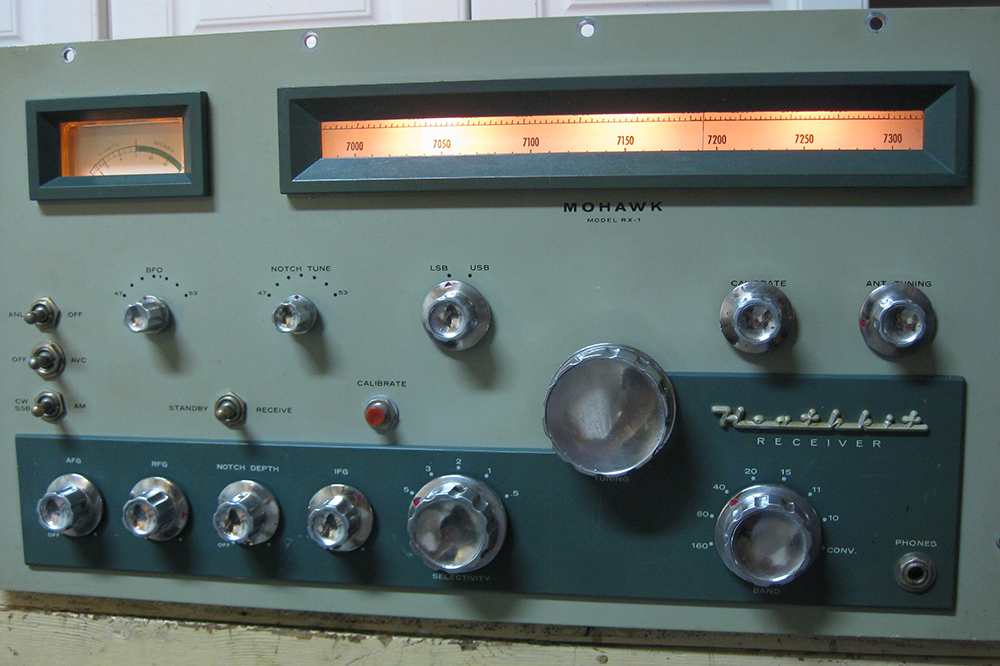

Heathkit Mohawk RX-1

Submitted by: John Treichler, KJ6SAV

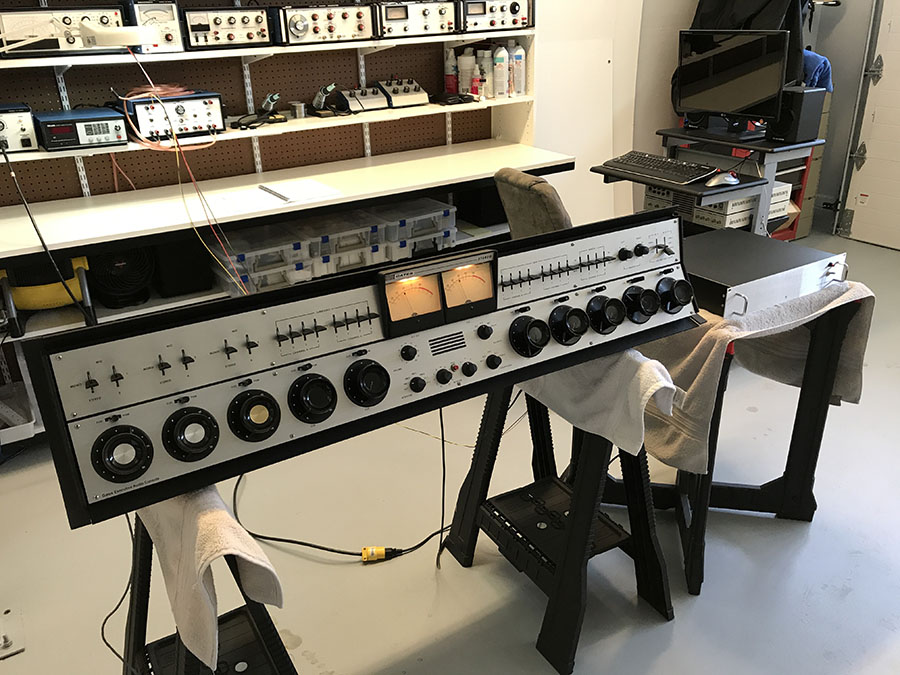

Gates Executive Audio Console Rebuild

Submitted by: Jerry Whitaker

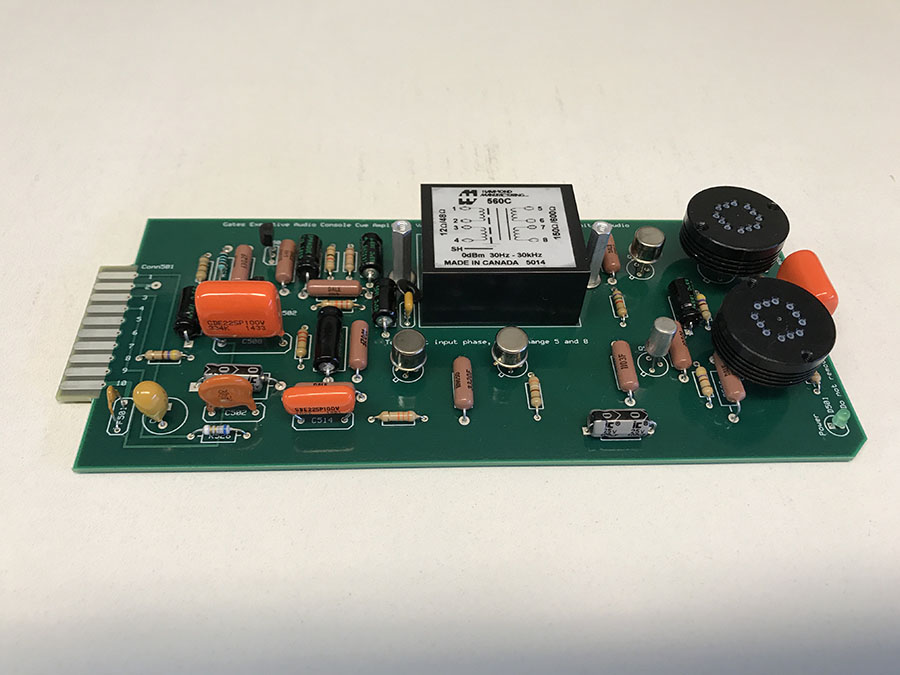

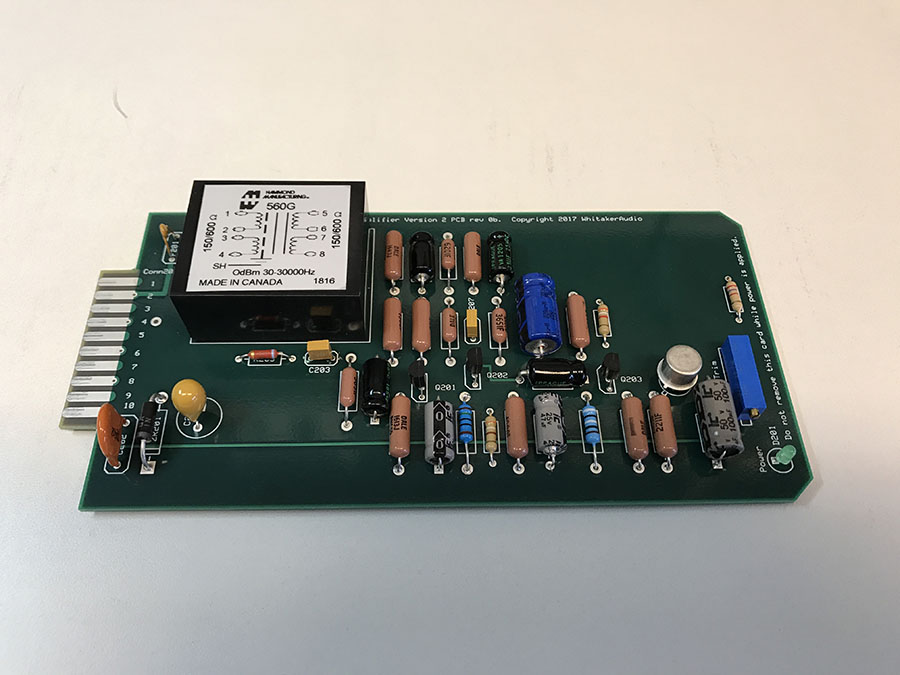

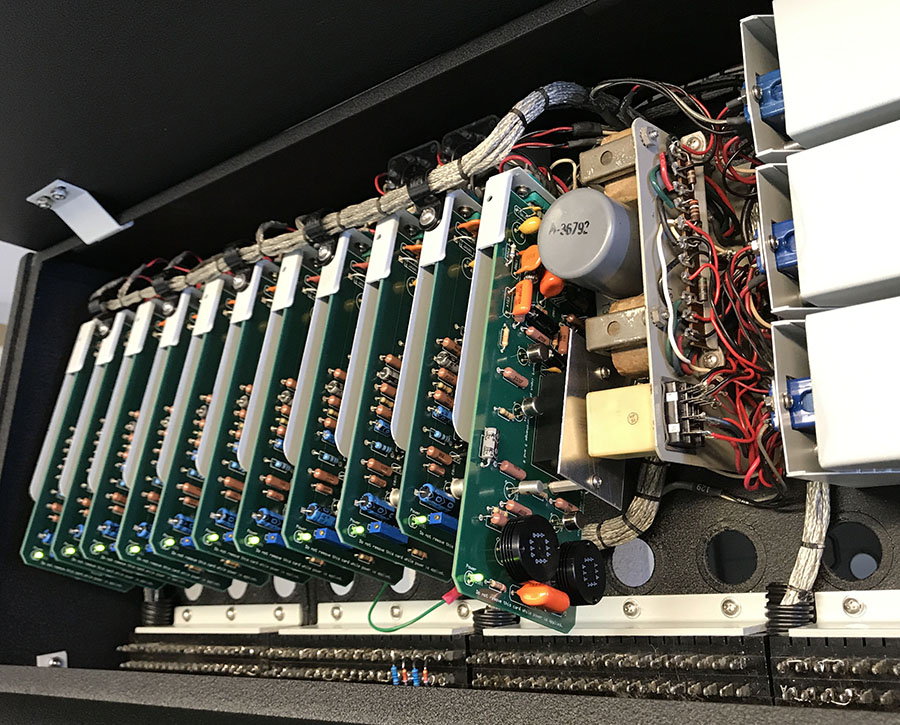

According to Jerry: This project is a rebuild of the Gates Executive Stereo Audio Console. Manufactured in the late 1960s through 1970s, the Executive was the largest console of its type offered for sale by Gates Radio, a major broadcast equipment supplier of the time. In order to bring the console back to useful service, it was necessary to remanufacture many of the circuit boards. I selected the Hammond 560 series of broadcast transformers. Two of the new boards (one with a 560C and the other with a 560G ) are shown in the attached photo. The main card cage for the console includes 11 of these boards, as shown in an attached photo. I have had very good luck with the 560 series of transformers. They perform very well. I will be using them for other projects going forward.
