Metric Conversion Information
Length
Area
Temperature
Imperial to Metric Absolute Units 1° Fahrenheit = 0.555° Celsius Thermometer Reading To convert a °F temperature reading, use the following equation: (°F - 32) x 0.555 = °C
Metric to Imperial Absolute Units 1° Celsius = 1.8° Fahrenheit Thermometer Reading To convert a °C temperature reading, use the following equation: (°C x 1.8) + 32 = °F
Material Thickness Cross Reference Chart
Length
| col1 | col2 | col3 | col4 | col5 | col6 | col7 | col8 | col9 | col10 | col11 | col12 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 mm | = | 0.039 in. | 8 mm | = | 0.315 in. | 60 mm | = | 2.362 in. | 400 mm | = | 15.748 in. |
| 2 mm | = | 0.079 in. | 9 mm | = | 0.354 in. | 70 mm | = | 2.756 in. | 500 mm | = | 19.685 in. |
| 3 mm | = | 0.118 in. | 10 mm | = | 0.394 in. | 80 mm | = | 3.150 in. | 600 mm | = | 23.622 in. |
| 4 mm | = | 0.157 in. | 20 mm | = | 0.787 in. | 90 mm | = | 3.543 in. | 700 mm | = | 27.559 in. |
| 5 mm | = | 0.197 in. | 30 mm | = | 1.181 in. | 100 mm | = | 3.937 in. | 800 mm | = | 31.496 in. |
| 6 mm | = | 0.236 in. | 40 mm | = | 1.575 in. | 200 mm | = | 7.874 in | 900 mm | = | 35.433 in. |
| 7 mm | = | 0.276 in. | 50 mm | = | 1.969 in. | 300 mm | = | 11.811 in. | 1000 mm | = | 39.370 in. |
| Imperial to Metric | Imperial to Metric | Imperial to Metric | Imperial to Metric | Imperial to Metric | Imperial to Metric | Metic to Imperial | Metic to Imperial | Metic to Imperial | Metic to Imperial | Metic to Imperial | Metic to Imperial |
| 1 inch | = | 25.40 mm | 1 foot | = | 0.3048 m | 1 mm | = | 0.03937 in. | 1 m | = | 3.281 feet |
| 1 inch | = | 2.54 cm | 1 yard | = | 91.44 cm | 1 cm | = | 0.3937 in. | 1 m | = | 1.0936 yards |
| 1 foot | = | 30.48 cm | 1 yard | = | 0.9144 m | 1 m | = | 39.37 in. |
Area
| col1 | col2 | col3 | col4 | col5 | col6 |
|---|---|---|---|---|---|
| 1 sq. inch | = | 645.16 sq. millimeters | 1 sq. millimeter (mm2) | = | 0.00155 sq. inch |
| 1 sq. inch | = | 6.4516 sq. centimeters | 1 sq. centimeter (cm2) | = | 0.1550 sq. inch |
| 1 sq. foot | = | 929.03 sq. centimeters | 1 sq. meter (m2) | = | 10.7640 sq. feet |
| 1 sq. foot | = | 0.0929 sq. meter | 1 sq. meter (m2) | = | 1.196 sq. yards |
| 1 sq. yard | = | 0.836 sq. meter |

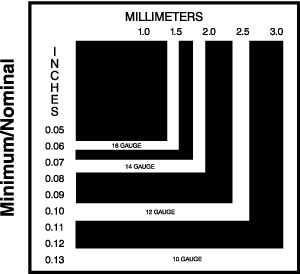

Material Thickness Cross Reference Chart
| col1 | col2 |
|---|---|
| 3.0 mm = 0.118 ins. | 10 gauge = 0.1345/0.1225 ins. = 3.416/3.112 mm |
| 2.5 mm = 0.098 ins. | 12 gauge = 0.1046/0.0926 ins. = 2.657/2.352 mm |
| 2.0 mm = 0.079 ins. | 14 gauge = 0.0747/0.0667 ins. = 1.897/1.694 mm |
| 1.5 mm = 0.059 ins. | 16 gauge = 0.0598/0.0528 ins. = 1.519/1.341 mm |
