Two Design Styles
The application or use normally decides the style. For example, if frequent opening is required, the new 1/4 turn contemporary design is faster and easier than removing the compression clamps. If the application demands heavy equipment mounted to the doors or large cutouts that weaken the door structure, a heavy duty traditional style is recommended. Hammond offers a variety of both Traditional and Euro/Contemporary designs with various NEMA ratings, material types and features.

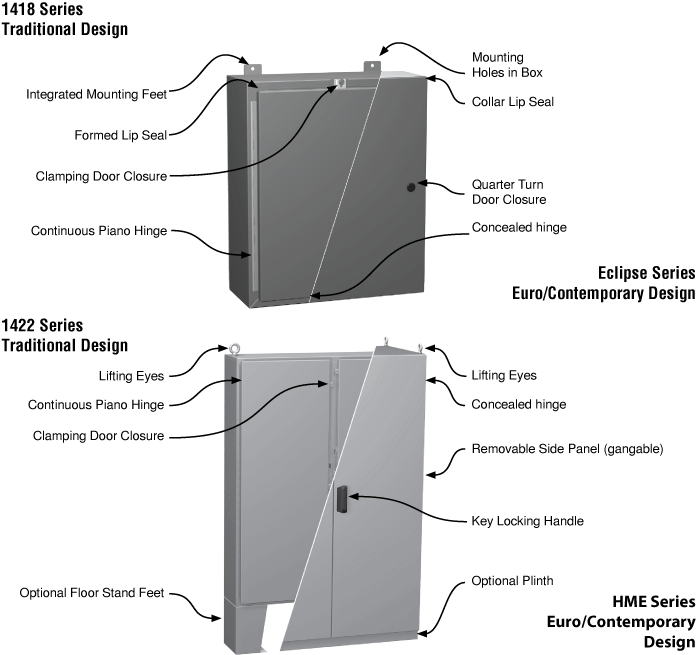

Traditional Design
Traditional design is generally heavy duty or severe environment conditions.
Euro or Contemporary Design
Euro/Contemporary design is generally used for appearance, ease of entry or for use with modular accessories.

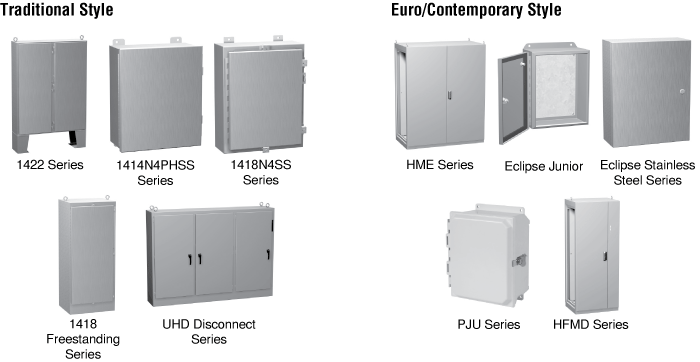

Features and Benefits of Enclosure Types
* Eclipse Junior & HME Series includes a galvanized inner panel.
Features and Benefits of Enclosure Types
| Features | Traditional | Euro/Contemporary |
|---|---|---|
| Enclosure Types | Wallmounts, Floormounts, Freestanding | Wallmounts, Floormount Modular |
| NEMA Rating | Type 12, 4 & 4X | Type 12, 4 & 4X |
| Material Type | Mild Steel, Stainless Steel, Non-metallic | Mild Steel, Stainless Steel, Non-metallic |
| Finish | Mild Steel ASA 61 Gray exterior White interior Stainless Steel - brushed Non-metallic - Medium Gray | Mild Steel ASA 61 Gray Exterior RAL 7035 interior/exterior Stainless Steel - brushed Non-metallic - Medium Gray |
| Hinges | Continuous piano hinge advantage - greater strength | Concealed hinge advantage - easily removable |
| Door Closure | Clamps, screws or handle advantage - maximum surface area | Quarter Turn - 2 or 3 point handle advantage - easily accessible entry |
| Padlocking | Comes standard on enclosure | Accessory padlock adaptor available |
| Mounting Options | Integrated mounting feet | Holes through box or optional feet |
| Lip Construction | Flat or formed lip seal | Flanged trough collar (FTC) lip seal |
| Inner Panel | White inner panel included | White or galvanized inner panel available as an accessory* |
