Type 12 Single Door Selection Guide
Space Occupied by Disconnect
Disconnects will occupy space on panel shown by dimensions "K", "L" and "M".
Wiring space "P" is available when disconnect is installed in the enclosure.
*The disconnect information and space occupied tables based on data supplied by disconnect manufacturer’s bulletins. Hammond Manufacturing not responsible for dimensional accuracy.
ABB Controls
ABB Controls Disconnect Switches (Flange Mounted Operators)
¹ J type fuse clips are standard. If 600 V Type “T” fuse clips are desired order T type fuse adaptor kit. ² 200 A available by using non-fusible 200A switch and a trailing fuse block. (consult ABB) ABB Controls Circuit Breaker (Flange Mounted Operators)
Charts reference Space Occupied by Disconnect Drawing.
Allen Bradley
Allen Bradley 1494U Disconnect Switches
1 Series B 2 "M" dimension does not allow for auxiliary switches. Allen Bradley 1494U Circuit Breakers
1 "M" dimension does not allow for auxiliary switches. Charts reference Space Occupied by Disconnect Drawing.
Cutler Hammer
Cutler Hammer C361 Disconnect Switches
¹ Wire bend space "P" does not allow the use of maximum cable size in 8" deep enclosures. ² 200A switch should be installed in enclosures with an "A" dimension of 30" or greater.
Cutler Hammer C371 Circuit Breaker Operators (C-H Westinghouse Circuit Breakers)
Charts reference Space Occupied by Disconnect Drawing.
Cutler Hammer Flex-Shaft™ Operator Mechanisms (C-H Westinghouse Circuit Breakers)
Part numbers for Complete Operator Mechanisms include flange mounted handle, flexible shaft and circuit breaker mechanism. The last digit of the part number denotes the shaft length (F1S03=3' length).
Space Occupied By Disconnect 1. Flex-Shaft™ System permits circuit breaker locations separate from flange mounted handle mechanism. 2. See National Electrical Code 2005 article 430-10(b) for wiring space (Ref “P”) needed for line side conductors. 3. Select shaft length based on location of circuit breaker in the enclosure. Maintain a 4" minimum bending radius for the Flex-Shaft™. 4. Space occupied by circuit breaker is calculated by:
Charts reference Space Occupied by Disconnect Drawing.
- ■F,J,K frame Flex-Shafts™ available in 3' to 10' lengths.
- ■L,N,R frame Flex-Shafts™ available in 4' to 6' lengths.
- ■Overall (Height "X" and Width "Y")
- ■Minimum wire bend space (manufacturer specified)
- ■Location "M" from right to left.
General Electric
General Electric Type STDA Disconnect Switches
¹ Applies to 8" deep enclosures, and is 0.875" less in 12" deep enclosures.
General Electric Type STDA Circuit Breaker Operators
¹ Applies to 8" deep enclosures, and is 0.875" less in 12" deep enclosures. Charts reference Space Occupied by Disconnect Drawing.
General Electric Circuit Breakers (Spectra-Flex™ Cable Operators)
Charts reference Space Occupied by Disconnect Drawing.
- ■GE Spectra-Flex™ Operating Cables permit circuit breaker locations separate from flange mounted handle mechanism.
- ■See National Electrical Code 2005 article 430-10(b) for wiring space (Ref “P”) needed for line side conductors.
- ■Select shaft length based on location of circuit breaker in the enclosure. Maintain a 3" minimum bending radius for the Flex-Shaft™.
- ■Space occupied by circuit breaker is calculated by: Overall (Height "X" and Width "Y") Minimum wire bend space (manufacturer specified) Location "M" from right to left
- ■Overall (Height "X" and Width "Y")
- ■Minimum wire bend space (manufacturer specified)
- ■Location "M" from right to left
Siemens I-T-E
I-T-E - Disconnect Switches (Max-Flex™ Operators)
Siemens I-T-E Max-Flex™ Operators (Circuit Breakers)
Space Occupied By Disconnect 1. I-T-E Max-Flex™ System permits circuit breaker locations separate from flange mounted handle mechanism. 2. See National Electrical Code 2005 article 430-10(b) for wiring space (Ref “P”) needed for line side conductors. 3. See Siemens I-T-E instructions for disconnect location limitations when using 36" or 48" Max-Flex™ cables. 4. Space occupied by circuit breaker is calculated by:
- ■Overall (Height "X" and Width "Y")
- ■Minimum wire bend space (manufacturer specified)
- ■Location "M" from right to left.
- ■Charts reference Space Occupied by Disconnect Drawing.
Square D
Square D Class 9422 Disconnect Switches
Square D Class 9422 Variable Depth Operators (Circuit Breakers)
Charts reference Space Occupied by Disconnect Drawing.
Square D Class 9422 Disconnect Switches (Cable Mechanism 9422-CFT30 and 9422A-1 Handle Mechanism)
Square D Class 9422 Cable Mechanism (Circuit Breakers)
Space Occupied By Disconnect Switch 1. Square D Cable System permits circuit breaker locations separate from flange mounted handle mechanism. 2. See National Electrical Code 2005 article 430-10(b) for wiring space (Ref "P") needed for line side conductors. 3. Select cable mechanism length based on disconnect location in enclosure. See Square D instructions for minimum cable bend radius. 4. Space occupied by circuit breaker is calculated by:
Charts reference Space Occupied by Disconnect Drawing.
- ■Overall (Height "X" and Width "Y")
- ■Minimum wire bend space (manufacturer specified)
| Hammond Series | Hammond Series (2) | 1447S | EN4DCS all versions |
|---|---|---|---|
| ABB Controls | Disconnect Switch | Flange operated switch (fusible or non-fusible) | Flange operated switch (fusible or non-fusible) |
| ABB Controls | Disconnect Switch | Shaft: 8-12” dp enclosures, use DSFHS-12; 16” dp enclosures, use DSFHS-17 | Shaft: 8-12” dp enclosures, use DSFHS-12; 16” dp enclosures, use DSFHS-17 |
| ABB Controls | Disconnect Switch | Handle: DSFHN-HS4 | Handle: n/a |
| ABB Controls | Disconnect Switch | Door Hardware: n/a | Door Hardware: n/a |
| ABB Controls | Circuit Breaker | Circuit breaker: ABB | Circuit breaker: ABB |
| ABB Controls | Circuit Breaker | Operating Mechanism: see ABB chart | Operating Mechanism: see ABB chart |
| ABB Controls | Circuit Breaker | Shaft: 8-12” dp enclosures, use K7FHD-S12; 16” dp enclosures, use K7FHD-S17 | Shaft: 8-12” dp enclosures, use K7FHD-S12; 16” dp enclosures, use K7FHD-S17 |
| ABB Controls | Circuit Breaker | Handle: K7FHD-HS4 | Handle: n/a |
| ABB Controls | Circuit Breaker | Door Hardware: n/a | Door Hardware: n/a |
| Allen Bradley | 1494U Flange Disconnect Switch | Disconnect switch and operating mechanism: Bulletin 1494U | Disconnect switch and operating mechanism: Bulletin 1494U |
| Allen Bradley | 1494U Flange Disconnect Switch | Handle: Bulletin 1494U-W1 | Handle: n/a |
| Allen Bradley | 1494U Flange Disconnect Switch | Connecting rod: 8-10” dp enclosures, use 1494U-RA1; 12-16” dp enclosures, use 1494U-RA2 | Connecting rod: 8-10” dp enclosures, use 1494U-RA1; 12-16” dp enclosures, use 1494U-RA2 |
| Allen Bradley | 1494U Flange Disconnect Switch | (except for Hammond part # 1447S46L12, use 1494U-RB2 (2)) | (except for Hammond part # 1447S46L12, use 1494U-RB2 (2)) |
| Allen Bradley | 1494U Flange Disconnect Switch | Trailer fuse block kit (if required): Bulletin 1494U | Trailer fuse block kit (if required): Bulletin 1494U |
| Allen Bradley | 1494U Flange Disconnect Switch | Fuse kit (if required) | Fuse kit (if required) |
| Allen Bradley | 1494U Flange Disconnect Switch | Line and load connectors (if required) | Line and load connectors (if required) |
| Allen Bradley | 1494U Flange Disconnect Switch | Door Hardware: n/a | Door Hardware: n/a |
| Allen Bradley | 1494U Flange Circuit Breaker | Circuit breaker: C-H Westinghouse | Circuit breaker: C-H Westinghouse |
| Allen Bradley | 1494U Flange Circuit Breaker | Operating mechanism: Bulletin 1494U | Operating mechanism: Bulletin 1494U |
| Allen Bradley | 1494U Flange Circuit Breaker | Handle: Bulletin 1494U-W11 | Handle: n/a |
| Allen Bradley | 1494U Flange Circuit Breaker | Connecting rod: 8-10” dp enclosures, use 1494U-RA1; 12-16” dp enclosures, use 1494U-RA2 | Connecting rod: 8-10” dp enclosures, use 1494U-RA1; 12-16” dp enclosures, use 1494U-RA2 |
| Allen Bradley | 1494U Flange Circuit Breaker | Door Hardware: n/a | Door Hardware: n/a |
| Cutler Hammer | Type C361 Disconnect Switch | Disconnect switch and operating mechanism | Disconnect switch and operating mechanism |
| Cutler Hammer | Type C361 Disconnect Switch | Handle: C361-H2 or H4 | Handle: n/a |
| Cutler Hammer | Type C361 Disconnect Switch | Door Hardware: n/a | Door Hardware: n/a |
| Cutler Hammer | Type C371 Circuit Breaker | Circuit breaker: C-H Westinghouse | Circuit breaker: C-H Westinghouse |
| Cutler Hammer | Type C371 Circuit Breaker | Operating mechanism | Operating mechanism |
| Cutler Hammer | Type C371 Circuit Breaker | Handle: 150 amp, use C371H2 or H4; 250-600 amp, use C371H6 or H8 | Handle: n/a |
| Cutler Hammer | Type C371 Circuit Breaker | Door Hardware: n/a | Door Hardware: n/a |
| Cutler Hammer | C-H Westinghouse Circuit Breaker w/FlexShaft | Circuit breaker | Circuit breaker |
| Cutler Hammer | C-H Westinghouse Circuit Breaker w/FlexShaft | Complete Flex-Shaft handle mechanism | Complete Flex-Shaft handle mechanism |
| Cutler Hammer | C-H Westinghouse Circuit Breaker w/FlexShaft | Door Hardware: n/a | Door Hardware: n/a |
| General Electric | Type STDA Flange Disconnect Switch | Disconnect switch Type QMR or QMW | Disconnect switch Type QMR or QMW |
| General Electric | Type STDA Flange Disconnect Switch | Handle: STDA1X | Handle: n/a |
| General Electric | Type STDA Flange Disconnect Switch | Fuse kit (if required) | Fuse kit (if required) |
| General Electric | Type STDA Flange Disconnect Switch | Variable depth operating mechanism | Variable depth operating mechanism |
| General Electric | Type STDA Flange Disconnect Switch | Door Hardware: n/a | Door Hardware: n/a |
| General Electric | Type STDA Flange Circuit Breaker | Circuit breaker | Circuit breaker |
| General Electric | Type STDA Flange Circuit Breaker | Handle: STDA1X | Handle: n/a |
| General Electric | Type STDA Flange Circuit Breaker | Variable depth operating mechanism | Variable depth operating mechanism |
| General Electric | Type STDA Flange Circuit Breaker | Door Hardware: n/a | Door Hardware: n/a |
| General Electric | Circuit Breaker w/SpectraFlex | Circuit breaker | Circuit breaker |
| General Electric | Circuit Breaker w/SpectraFlex | Flange Mt. Handle: 150-600 amp, use STDA1X; SK1200, use STDA3X | Handle: n/a |
| General Electric | Circuit Breaker w/SpectraFlex | Breaker mounted mechanism. | Breaker mounted mechanism. |
| General Electric | Circuit Breaker w/SpectraFlex | Operating cable | Operating cable |
| General Electric | Circuit Breaker w/SpectraFlex | Door Hardware: n/a | Door Hardware: n/a |
| I-T-E Siemens | Max-Flex Flange Disconnect Switch | Disconnect switch: MCS | Disconnect switch: MCS |
| I-T-E Siemens | Max-Flex Flange Disconnect Switch | Fuse Kit (if required) | Fuse Kit (if required) |
| I-T-E Siemens | Max-Flex Flange Disconnect Switch | Handle: Flange mount FHOHS4 | Handle: n/a |
| I-T-E Siemens | Max-Flex Flange Disconnect Switch | Switch operator mechanism | Switch operator mechanism |
| I-T-E Siemens | Max-Flex Flange Disconnect Switch | Operating cable (standard 36.0”) | Operating cable (standard 36.0”) |
| I-T-E Siemens | Max-Flex Flange Disconnect Switch | Door Hardware: n/a | Door Hardware: n/a |
| I-T-E Siemens | Max-Flex Flange Circuit Breaker | Circuit breaker | Circuit breaker |
| I-T-E Siemens | Max-Flex Flange Circuit Breaker | Pressure wire connectors | Pressure wire connectors |
| I-T-E Siemens | Max-Flex Flange Circuit Breaker | Handle: Flange mount FHOH4 | Handle: n/a |
| I-T-E Siemens | Max-Flex Flange Circuit Breaker | Circuit breaker operator mechanism | Circuit breaker operator mechanism |
| I-T-E Siemens | Max-Flex Flange Circuit Breaker | Operating cable: Standard 36" | Operating cable: Standard 36" |
| I-T-E Siemens | Max-Flex Flange Circuit Breaker | Door Hardware: n/a | Door Hardware: n/a |
| Square D | Class 9422 Disconnect Switch | Disconnect switch and operating mechanism 9422 | Disconnect switch and operating mechanism 9422 |
| Square D | Class 9422 Disconnect Switch | Handle: 1447SN4 use A-1 or A-2; 1447SN4SS use A-2 | Handle: n/a |
| Square D | Class 9422 Disconnect Switch | Door Hardware: n/a | Door Hardware: n/a |
| Square D | Class 9422 Circuit Breaker | Circuit breaker | Circuit breaker |
| Square D | Class 9422 Circuit Breaker | Operating mechanism: Class 9422 | Operating mechanism: Class 9422 |
| Square D | Class 9422 Circuit Breaker | Handle: 1447SN4 use A-1 or A-2; 1447SN4SS use A-2 | Handle: n/a |
| Square D | Class 9422 Circuit Breaker | Door Hardware: n/a | Door Hardware: n/a |
| Square D | Class 9422 “T” Disconnect Switch w/ cable mechanism | Disconnect switch and operating mechanism 9422, Type T | Disconnect switch and operating mechanism 9422, Type T |
| Square D | Class 9422 “T” Disconnect Switch w/ cable mechanism | Handle: 1447SN4 use A-1 or A-2; 1447SN4SS use A-2 | Handle: n/a |
| Square D | Class 9422 “T” Disconnect Switch w/ cable mechanism | Cable mechanism: Class 9422 CFT_O - 3, 5, or 10 foot | Cable mechanism: Class 9422 CFT_O - 3, 5, or 10 foot |
| Square D | Class 9422 “T” Disconnect Switch w/ cable mechanism | Door Hardware: n/a | Door Hardware: n/a |
| Square D | Circuit Breaker w/cable mechanism | Circuit breaker: Square D | Circuit breaker: Square D |
| Square D | Circuit Breaker w/cable mechanism | Handle: 1447SN4 use A-1 or A-2; 1447SN4SS use A-2 | Handle: n/a |
| Square D | Circuit Breaker w/cable mechanism | Door Hardware: n/a | Door Hardware: n/a |

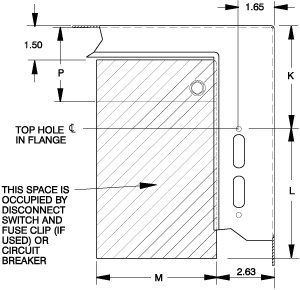

Space Occupied by Disconnect
| col1 | col2 | col3 | col4 | col5 | col6 | col7 | col8 |
|---|---|---|---|---|---|---|---|
| Note: | "K" | = | 8.62 | when | "C" | = | 8.00 |
| "K" | = | 11.62 | when | "C" | = | 12.00 | |
| "P" | = | Wiring Space | Wiring Space | Wiring Space | Wiring Space | Wiring Space |
ABB Controls Disconnect Switches (Flange Mounted Operators)
| Fits Enclosure Depth · 8 | Fits Enclosure Depth · 12 | ABB Switch Number | Amp · Rating | Fuse Clip | Fuse Class | Space Occupied · L | Space Occupied · M | When K=8.62 · P | When K=11.62 · P |
|---|---|---|---|---|---|---|---|---|---|
| • | • | OETL-NF30-F | 30A | No Fuse | — | 4.45 | 3.78 | 10.28 | 13.28 |
| • | • | OETL-NF60-F | 60A | No Fuse | — | 4.86 | 3.78 | 10.09 | 13.09 |
| • | • | OETL-NF100-F | 100A | No Fuse | — | 4.86 | 4.78 | 9.53 | 12.53 |
| • | • | OETL-NF175-F | 175A | No Fuse | — | 7.30 | 6.49 | 7.28 | 10.28 |
| • | • | OETL-NF200-F | 200A | No Fuse | — | 7.36 | 7.28 | 7.28 | 10.28 |
| • | • | OESA-F30J6-F | 30A | 30A-600V | J | 4.28 | 6.58 | 8.61 | 11.61 |
| • | • | OESA-F60J6-F | 60A | 60A-600V | J | 4.28 | 6.26 | 8.61 | 11.61 |
| • | • | OESA-F100J6-F | 100A | 100A-600V | J ¹ | 6.54 | 7.65 | 8.17 | 11.17 |
| 200A ² |
ABB Controls Disconnect Switches (Flange Mounted Operators)
| Fits Enclosure Depth · 8 | Fits Enclosure Depth · 12 | ABB Mechanism | Amp · Rating | Fuse Type | Space Occupied · L | Space Occupied · M | When K=8.62 · P | When K=11.62 · P |
|---|---|---|---|---|---|---|---|---|
| • | • | FHD-M | 150A | D | 6.92 | 3.94 | 9.17 | 12.17 |
| • | • | FHF-M | 15A-225A | E/Q | 5.98 | 4.23 | 7.72 | 10.72 |
| • | • | FHF-M | 225A | Frame | 7.44 | 4.23 | 7.72 | 10.72 |
| • | FHJ-M | 400A | J | 9.71 | 5.62 | — | 8.77 | |
| • | FHM-M | 600A | L | 8.28 | 11.26 | — | 8.28 | |
| • | FHM-M | 800A | M | 10.11 | 11.26 | — | 7.87 |
ABB Controls Disconnect Switches (Flange Mounted Operators)
| Fits Enclosure Depth · 8 | Fits Enclosure Depth · 12 | ISOMAX Circuit Breaker | Amp Rating | Operating Mechanism | Fuse Type | Space Occupied · L | Space Occupied · M | When K=4.75 · P | When K=7.09 · P |
|---|---|---|---|---|---|---|---|---|---|
| • | • | S1N100TL | 100A | K2FHD-M | S1 | 5.30 | 4.60 | 9.13 | 12.13 |
| • | S3N150TW | 150A | K3FHD-M | S3 | 6.67 | 5.02 | 11.53 | ||
| • | S3N225TW | 225A | K3FHD-M | S3 | 6.67 | 5.02 | 11.53 | ||
| • | S4N250BW | 250A | K4FHD-M | S4 | 8.45 | 5.02 | 10.00 | ||
| • | S5N400TW | 400A | K5FHD-M | S5 | 8.45 | 6.40 | 10.00 | ||
| • | S6N600TW | 600A | K6FHD-M | S6 | 8.33 | 10.00 | 9.33 | ||
| • | S6N800TW | 800A | K6FHD-M | S6 | 8.33 | 10.00 | 9.33 |
Allen Bradley 1494U Disconnect Switches
| Fits Enclosure Depth · 8 | Fits Enclosure Depth · 12 | Alan Bradley · Type Number | Amp · Rating | Fuse Clip | Fuse Class | Space Occupied · L | Space Occupied · M | When K=8.62 · P | When K=11.62 · P |
|---|---|---|---|---|---|---|---|---|---|
| • | • | DS30 | 30A | No Fuse | — | 3.88 | 6.62 | 6.75 | 9.75 |
| • | • | DS30 | 30A | 30A-250V | H,K,R | 5.25 | 6.62 | 6.75 | 9.75 |
| • | • | DS30 | 30A | 30A-600V | H,K,R | 8.00 | 6.62 | 6.75 | 9.75 |
| • | • | DS30 | 30A | 30A-600V | J | 5.25 | 6.62 | 6.75 | 9.75 |
| • | • | DS30 | 30A | 60A-250V | H,K | 6.00 | 6.62 | 6.75 | 9.75 |
| • | • | DS30 | 30A | 60A-600V | H,K | 8.50 | 6.62 | 6.75 | 9.75 |
| • | • | DS30 | 30A | 60A-600V | J | 5.38 | 6.62 | 6.75 | 9.75 |
| • | • | DS60 | 60A | No Fuse | — | 3.88 | 6.62 | 6.62 | 9.62 |
| • | • | DS60 | 60A | 60A-250V | H,K,R | 6.00 | 6.62 | 6.62 | 9.62 |
| • | • | DS60 | 60A | 60A-600V | H,K,R | 8.50 | 6.62 | 6.62 | 9.62 |
| • | • | DS60 | 60A | 60A-600V | J | 5.38 | 6.62 | 6.62 | 9.62 |
| • | • | DS60 | 60A | 30A-600V | H,K,R | 8.00 | 6.62 | 6.62 | 9.62 |
| • | • | DS60 | 60A | 100A-250V | H,K | 8.50 | 6.62 | 6.62 | 9.62 |
| • | • | DS60 | 60A | 100A-600V | H,K | 10.50 | 6.62 | 6.62 | 9.62 |
| • | • | DS60 | 60A | 100A-600V | J | 7.25 | 6.62 | 6.62 | 9.62 |
| • | • | DS100¹ | 100A | No Fuse | — | 3.88 | 6.62 | 6.44 | 9.62 |
| • | • | DS100¹ | 100A | 100A-250V | H,K,R | 8.12 | 6.62 | 6.44 | 9.62 |
| • | • | DS100¹ | 100A | 100A-600V | H,K,R | 10.12 | 6.62 | 6.44 | 9.62 |
| • | • | DS100¹ | 100A | 100A-600V | J | 6.88 | 6.62 | 6.44 | 9.62 |
| • | • | DS100¹ | 100A | 60A-600V | H,K,R | 10.12 | 6.62 | 6.44 | 9.62 |
| • | • | DS100¹ | 100A | 60A-600V | J | 8.88 | 6.62 | 6.44 | 9.62 |
| • | DS200¹ | 200A | No Fuse | — | 4.75 | 7.88 | — | 8.12 | |
| • | DS200¹ | 200A | 200A-250V | H,K,R | 10.88 | 7.88 | — | 8.12 | |
| • | DS200¹ | 200A | 200A-600V | H,K,R | 13.38 | 7.88 | — | 8.12 | |
| • | DS200¹ | 200A | 200A-600V | J | 9.50 | 7.88 | — | 8.12 | |
| • | DS200¹ | 200A | 100A-600V | H,K,R | 12.00 | 7.88 | — | 8.12 | |
| • | DS200¹ | 200A | 100A-600V | J | 8.75 | 7.88 | — | 8.12 |
Allen Bradley 1494U Disconnect Switches
| Fits Enclosure Depth · 8 | Fits Enclosure Depth · 12 | Allen Bradley Type No. | Amp Rating | Fuse Type | Space Occupied · L | Space Occupied · M | When K=8.62 · P | When K=11.62 · P |
|---|---|---|---|---|---|---|---|---|
| • | • | M40 | 15A to 150A | C-H Westinghouse Circuit Breakers EHD,FD,FDB,FDC,HFD,HMCP | 5.00 | 4.50¹ | 8.12 | |
| • | • | M40 | 15A to 150A | C-H Westinghouse Circuit Breakers EHD,FD,FDB,FDC,HFD,HMCP | 5.00 | 4.50¹ | 8.12 | 11.12 |
| • | M50 | 70A to 250A | C-H Westinghouse Circuit Breakers JD,JDB,JDC,HJD,HMCP | 9.75 | 4.75¹ | — | ||
| • | M50 | 70A to 250A | C-H Westinghouse Circuit Breakers JD,JDB,JDC,HJD,HMCP | 9.75 | 4.75¹ | — | 10.62 | |
| • | M60 | 100A to 400A | C-H Westinghouse Circuit BreakersKD,KDB,DK,HKD,HMCP | 9.69 | 6.12¹ | — | ||
| • | M60 | 100A to 400A | C-H Westinghouse Circuit BreakersKD,KDB,DK,HKD,HMCP | 9.69 | 6.12¹ | — | 10.50 |
Cutler Hammer C361 Disconnect Switches
| Fits Enclosure Depth · 8 | Fits Enclosure Depth · 12 | Cutler Hammer · Type Number | Amp · Rating | Fuse Clip | Fuse Class | Space Occupied · L | Space Occupied · M | When K=8.62 · P | When K=11.62 · P |
|---|---|---|---|---|---|---|---|---|---|
| • | • | C361NC | 30A | No Fuse | — | 5.75 | 7.43 | 7.31 | 10.31 |
| • | • | C361SC21 | 30A | 30A-250V | H, K, R | 8.38 | 7.43 | 7.31 | 10.31 |
| • | • | C361SC61 | 30A | 60A-250V | H, K, R | 8.38 | 7.43 | 7.31 | 10.31 |
| • | • | C361SC61 | 30A | 30A-600V | H, J, K, R | 8.38 | 7.43 | 7.31 | 10.31 |
| • | • | C361ND | 60A | No Fuse | — | 5.75 | 7.43 | 7.31 | 10.31 |
| • | • | C361SD22 | 60A | 60A-250V | H, K, R | 8.38 | 7.43 | 7.31 | 10.31 |
| • | • | C361SD22 | 60A | 30A-600V | J | 8.38 | 7.43 | 7.31 | 10.31 |
| • | • | C361SD62 | 60A | 30A-600V | H, K, R | 8.38 | 7.43 | 7.31 | 10.31 |
| • | • | C361SD62 | 60A | 60A-600V | J | 8.38 | 7.43 | 7.31 | 10.31 |
| • | • | C361NE | 100A | No Fuse | — | 5.56 | 8.95 | 7.47 | 9.91 |
| • | • | C361SE263 | 100A | 100A-250V | H, K, R | 10.31 | 8.95 | 7.47 | 9.91 |
| • | • | C361SE263 | 100A | 100A-600V | H, K, R | 10.31 | 8.95 | 7.47 | 9.91 |
| • | • | C361SE263 | 100A | 100A-600V | J | 10.31 | 8.95 | 7.47 | 9.91 |
| ¹ , ² | ² | C361NF | 200A | No Fuse | — | 13.06 | 10.00 | 4.94 | 7.94 |
| ¹ , ² | ² | C361SF264 | 200A | 200A-250V | H, K, R | 13.06 | 10.00 | 4.94 | 7.94 |
| ¹ , ² | ² | C361SF264 | 200A | 200A-600V | H, J, K, R | 13.06 | 10.00 | 4.94 | 7.94 |
Cutler Hammer C371 Circuit Breaker Operators (C-H Westinghouse Circuit Breakers)
| Fits Enclosure Depth · 8 | Fits Enclosure Depth · 12 | Allen Bradley Type No. | Amp · Rating | Fuse Type | Space Occupied · L | Space Occupied · M | When K=8.62 · P | When K=11.62 · P |
|---|---|---|---|---|---|---|---|---|
| • | • | C371E | 150A | F Frame EHD,FDB,FD,HFD,FDC | 6.00 | 5.50 | 8.44 | 11.44 |
| • | • | C371E | 150A | F Frame HMCP | 6.00 | 5.50 | 8.44 | 11.44 |
| • | C371F | 250A | J Frame JDB,JD,HJD,JDC | 8.94 | 8.00 | — | 11.25 | |
| • | C371F | 250A | J Frame HMCP | 10.94 | 8.00 | — | 11.25 | |
| • | C371F | 400A | K Frame DK,KDB,KD,HKD | 9.75 | 8.00 | — | 10.75 | |
| • | C371F | 400A | K Frame HMCP | 9.75 | 8.00 | — | 10.75 | |
| • | C371G | 600A | L Frame LD,HLD,LDC | 8.44 | 11.88 | — | 9.18 | |
| • | C371G | 600A | L Frame HMCP | 8.44 | 11.88 | — | 9.18 |
Cutler Hammer Flex-Shaft™ Operator Mechanisms (C-H Westinghouse Circuit Breakers)
| Fits Enclosure Depth · 8 | Fits Enclosure Depth · 12 | Complete Operator · Mechansim | Complete Operator · Amp Rating | Fuse Type | Breaker Height · "X" | Breaker Width · "Y" |
|---|---|---|---|---|---|---|
| • | • | F1S03 | 150A | F Frame EHD,FDB,FD,HFD,FDC | 6.00 | 4.12 |
| • | • | F1S03 | 150A | F Frame HMCP | 6.00 | 4.12 |
| • | • | F2S03 | 250A | J Frame JDB,JD,HJD,JDC | 10.00 | 4.12 |
| • | • | F2S03 | 250A | J Frame HMCP | 10.00 | 4.12 |
| • | • | F3S03 | 400A | K Frame DK,KDB,KD,HKD | 10.12 | 5.50 |
| • | • | F3S03 | 400A | K Frame HMCP | 12.45 | 5.50 |
| • | F4S04 | 600A | L Frame LD,HLD,LDC | 10.75 | 8.25 | |
| • | F7S04 | 800A | M Frame MD,MDS | 16.00 | 8.25 | |
| • | F5S04 | 1200A | N Frame ND,HND,NDC | 16.00 | 8.25 | |
| • | F6S04 | 2500A | R Frame RD,CRD, RDC | 16.00 | 15.50 |
General Electric Type STDA Disconnect Switches
| Fits Enclosure Depth · 8 | Fits Enclosure Depth · 12 | General Electric Mechanism For Switch | Amp Rating | Fuse Clip | Fuse Class | Space Occupied · L | Space Occupied · M | When K=8.62 · P | When K=11.62 · P |
|---|---|---|---|---|---|---|---|---|---|
| • | • | TDOM1A | 30A | No Fuse | — | 7.75¹ | 5.25 | 9.12 | 12.12 |
| • | • | TDOM1A | 30A | 30A-250V | H, R | 7.75¹ | 5.25 | 9.12 | 12.12 |
| • | • | TDOM1B | 30A | 30A-600V | H, R | 12.38¹ | 5.25 | 9.12 | 12.12 |
| • | • | TDOM1B | 30A | 60A-250V | H, R | 12.38¹ | 5.25 | 9.12 | 12.12 |
| • | • | TDOM1B | 30A | 60A-600V | H, R | 12.38¹ | 5.25 | 9.12 | 12.12 |
| • | • | TDOM1A | 60A | No Fuse | — | 7.75¹ | 5.25 | 9.12 | 12.12 |
| • | • | TDOM1B | 60A | 60A-250V | H, R | 12.38¹ | 5.25 | 9.12 | 12.12 |
| • | • | TDOM1B | 60A | 60A-600V | H, R | 12.38¹ | 5.25 | 9.12 | 12.12 |
| • | • | TDOM1B | 60A | 100A-250V | H, R | 12.38¹ | 5.25 | 9.12 | 12.12 |
| • | • | TDOM1B | 60A | 100A-600V | H, R | 12.38¹ | 5.25 | 9.12 | 12.12 |
| • | • | TDOM1A | 100A | No Fuse | — | 7.75¹ | 5.25 | 9.12 | 12.12 |
| • | • | TDOM1B | 100A | 100A-250V | H, R | 12.38¹ | 5.25 | 9.12 | 12.12 |
| • | • | TDOM1B | 100A | 100A-600V | H, R | 12.38¹ | 5.25 | 9.12 | 12.12 |
| • | • | TDOM1B | 100A | 200A-250V | H, R | 12.38¹ | 5.25 | 9.12 | 12.12 |
| • | • | TDOM1B | 100A | 200A-600V | H, R | 12.38¹ | 5.25 | 9.12 | 12.12 |
| • | • | TDOM2 | 200A | No Fuse | — | 7.00 | 9.12 | 6.50 | 9.50 |
| • | • | TDOM2 | 200A | 200A-250V | H, R | 15.38 | 9.12 | 6.50 | 9.50 |
| • | • | TDOM2 | 200A | 200A-600V | H, R | 15.38 | 9.12 | 6.50 | 9.50 |
General Electric Type STDA Circuit Breaker Operators
| Fits Enclosure Depth · 8 | Fits Enclosure Depth · 12 | General Electric Mechanism For Switch | Amp Rating | Fuse Type | Space Occupied · L | Space Occupied · M | When K=8.62 · P | When K=11.62 · P |
|---|---|---|---|---|---|---|---|---|
| • | • | SDOM1A | 150A | TEB, TED, THED | 7.75¹ | 5.25 | 9.06 | 12.06 |
| • | • | SDOM1A | 150A | TEC | 7.75¹ | 5.25 | 9.06 | 12.06 |
| • | • | TDOM1B | 150A | TB1 | 12.38¹ | 5.25 | 9.06 | 12.06 |
| • | • | TDOM1B | 150A | TEC, TECL | 12.38¹ | 5.25 | 9.06 | 12.06 |
| • | • | TDOM1C | 150A | TEL | 7.75¹ | 5.25 | 9.06 | 12.06 |
| • | • | TDOM1D | 150A | THLC1 | 7.75¹ | 5.25 | 6.62 | 9.62 |
| • | • | TDOM3 | 225A | TFJ | 10.38 | 5.75 | 7.62 | 10.62 |
| • | • | TDOM3 | 225A | TFK, THFK, TFL | 10.38 | 5.75 | 7.62 | 10.62 |
| • | • | TDOM4 | 400A | TJJ, TJK4, THJK4, TJL4V | 8.25 | 9.38 | 6.69 | 9.69 |
| • | • | TDOM4 | 600A | TJK6, THJK6, TJ4V, TJL4V | 8.25 | 9.38 | 6.69 | 9.69 |
| • | • | TDOM5 | 400A | TB4, TJH6S | 14.25 | 9.38 | 6.69 | 9.69 |
| • | • | TDOM6 | 225A | TLB2, THLC2 | 11.75 | 9.38 | 6.12 | 9.12 |
| • | • | TDOM6 | 400A | TLB4, THLC4 | 11.75 | 9.38 | 4.75 | 7.75 |
| • | • | SDOM1A | 150A | SPECTRA SE150 | 7.75¹ | 5.25 | 9.06 | 12.06 |
| • | • | SDOM3 | 250A | SPECTRA SF250 | 10.38 | 5.75 | 7.06 | 10.06 |
| • | SDOM4 | 600A | SPECTRA SG600 | 10.00 | 7.00 | — | 7.93 |
General Electric Circuit Breakers (Spectra-Flex™ Cable Operators)
| Fits Enclosure Depth · C=8 | Fits Enclosure Depth · C=12 | Frame Size | Max Amp Rating | Circuit Breaker Height · X | Circuit Breaker Width · Y |
|---|---|---|---|---|---|
| • | • | E150 | 150A | 6.31 | 4.12 |
| • | • | SE150 | 150A | 6.31 | 4.12 |
| • | SF250 | 250A | 10.12 | 4.12 | |
| • | SG600 | 600A | 10.09 | 5.50 | |
| • | SK1200 | 1200A | 15.50 | 8.25 |
General Electric Circuit Breakers (Spectra-Flex™ Cable Operators)
| Frame Size | Breaker Mechanism | Flange Mounting Handle¹ | Operating Cable² |
|---|---|---|---|
| E150 | SCOM1A | SCH1 | SC3L |
| SE150/SF250 | SCOM1EF | SCH1 | SC3L |
| SG600 | SCOM1G | SCH1 | SC3L |
| SK1200 | SCOM1K | SCH2K | SC3H |
I-T-E - Disconnect Switches (Max-Flex™ Operators)
| Fits Enclosure Depth · C=8 | Fits Enclosure Depth · C=12 | Switch | Amp Rating | Fuse Clip | Fuse Class | Disconnect Height "X" | Disconnect Width "Y" |
|---|---|---|---|---|---|---|---|
| • | • | MCS603R | 30A | No Fuse | — | 5.52 | 6.13 |
| • | • | MCS603R | 30A | 30A-250V | H,K,R | 8.11 | 6.13 |
| • | • | MCS603R | 30A | 30A-600V | H,K,R | 10.11 | 6.13 |
| • | • | MCS603R | 30A | 30A-600V | J | 8.48 | 6.13 |
| • | • | MCS606R | 60A | No Fuse | — | 5.52 | 6.13 |
| • | • | MCS606R | 60A | 60A-250V | H,K,R | 7.86 | 6.13 |
| • | • | MCS606R | 60A | 60A-600V | H,K,R | 10.38 | 6.13 |
| • | • | MCS606R | 60A | 60A-600V | J | 8.36 | 6.13 |
| • | • | MCS610R | 100A | No Fuse | — | 7.59 | 7.38 |
| • | • | MCS610R | 100A | 100A-250V | H,K,R | 11.85 | 7.38 |
| • | • | MCS610R | 100A | 100A-600V | H,K,R | 13.85 | 7.38 |
| • | • | MCS610R | 100A | 100A-600V | J | 10.60 | 7.38 |
| • | • | MCS620R | 200A | No Fuse | — | 9.00 | 9.17 |
| • | • | MCS620R | 200A | 200A-250V | H,K,R | 14.70 | 9.17 |
| • | • | MCS620R | 200A | 200A-600V | H,K,R | 17.20 | 9.17 |
| • | • | MCS620R | 200A | 200A-600V | J | 13.32 | 9.17 |
Siemens I-T-E Max-Flex™ Operators (Circuit Breakers)
| Complete Operator Mechansim | Amp Rating | Breaker Frame Size | Circuit Breaker Type | Circuit Breaker Height "X" | Circuit Breaker Width "Y" |
|---|---|---|---|---|---|
| FHOE036 | 125A | ED | ED2,ED4,ED6,HED4,HED6, | 6.34 | 3.00 |
| FHOE036 | 125A | CED | CED6 | 9.58 | 3.00 |
| FHOF036 | 250A | FD | FXD6-A,FD6-A,HFD6,FXD6-ETJ,HHFD6, HHFXD6 | 9.50 | 4.50 |
| FHOF036 | 250A | CFD | CFD6,CFD6-ETI | 14.25 | 4.50 |
| FHOJ036 | 400A, 600A | JD, LD | JXD2,LXD6,JD6,LD6,HJD6,HLD6,HHJD6,HHLD6, HHJXD6,HHLXD6,JXD6-ETI,LXD6-ETI | 11.00 | 7.50 |
| FHOJ036 | 400A, 600A | CJD,CLD | CJD6,CLD6,CJD6-ETI,CLD6-ETI | 17.86 | 7.50 |
| FHOLMO36 | 800A | LMD | LMD6,LMXD6,HLMD6,HLMDX6,LMXD6-ETI | 16.00 | 9.00 |
Square D Class 9422 Disconnect Switches
| Fits Enclosure Depth · 8 | Fits Enclosure Depth · 12 | Square D Type Number | Amp Rating | Fuse Clip | Fuse Class | Space Occupied · L | Space Occupied · M | When K=8.62 P | When K=11.62 P |
|---|---|---|---|---|---|---|---|---|---|
| • | • | TCN-30 | 30A | No Fuse | — | 3.80 | 6.84 | 7.56 | 10.56 |
| • | • | TCF-30 | 30A | 30A-250V | H, K, R | 5.53 | 6.84 | 7.56 | 10.56 |
| • | • | TCF-33 | 30A | 30A-600V | H, K, R | 8.15 | 6.84 | 7.56 | 10.56 |
| • | • | TCF-33 | 30A | 60A-250V | H, K, R | 6.15 | 6.84 | 7.56 | 10.56 |
| • | • | TCF-33 | 30A | 30A-600V | J | 5.53 | 6.84 | 7.56 | 10.56 |
| • | • | TDN-60 | 60A | No Fuse | — | 3.80 | 6.84 | 7.56 | 10.56 |
| • | • | TDF-60 | 60A | 30A-600V | H, K, R | 8.15 | 6.84 | 7.56 | 10.56 |
| • | • | TDF-60 | 60A | 60A-250V | H, K, R | 6.15 | 6.84 | 7.56 | 10.56 |
| • | • | TDF-63 | 60A | 60A-600V | H, K, R | 8.65 | 6.84 | 7.56 | 10.56 |
| • | • | TDF-63 | 60A | 60A-600V | J | 5.53 | 6.84 | 7.56 | 10.56 |
| • | TEN-10 | 100A | No Fuse | — | 3.80 | 6.84 | 7.44 | 10.44 | |
| • | TEF-10 | 100A | 100A-250V | H, K, R | 8.25 | 6.84 | 7.44 | 10.44 | |
| • | TEF-10 | 100A | 100A-600V | H, K, R | 10.25 | 6.84 | 7.44 | 10.44 | |
| • | TEF-10 | 100A | 100A-600V | J | 7.05 | 6.84 | 7.44 | 10.44 | |
| • | • | TC-1 | 30A | No Fuse | — | 5.75 | 6.00 | 6.62 | 9.62 |
| • | • | TC-2 | 30A | 30A-250V | H, K, R | 5.75 | 6.00 | 6.62 | 9.62 |
| • | • | TC-3 | 30A | 30A-600V | H, K, R | 7.75 | 6.00 | 6.62 | 9.62 |
| • | • | TC-3 | 30A | 60A-250V | H, K, R | 5.88 | 6.00 | 6.62 | 9.62 |
| • | • | TC-3 | 30A | 30A-600V | J | 5.75 | 6.00 | 6.62 | 9.62 |
| • | • | TD-1 | 60A | No Fuse | — | 6.38 | 6.62 | 7.50 | 10.50 |
| • | • | TD-2 | 60A | 30A-600V | H, K, R | 8.50 | 6.62 | 7.50 | 10.50 |
| • | • | TD-2 | 60A | 60A-250V | H, K, R | 6.50 | 6.62 | 7.50 | 10.50 |
| • | • | TD-3 | 60A | 60A-600V | H, K, R | 9.00 | 6.62 | 7.50 | 10.50 |
| • | • | TD-3 | 60A | 60A-600V | J | 6.38 | 6.62 | 7.50 | 10.50 |
| • | TE-1 | 100A | No Fuse | — | 4.75 | 8.38 | — | 10.25 | |
| • | TE-2 | 100A | 100A-250V | H, K, R | 7.50 | 8.38 | — | 10.25 | |
| • | TE-2 | 100A | 100A-600V | H, K, R | 9.50 | 8.38 | — | 10.25 | |
| • | TE-2 | 100A | 100A-600V | J | 6.25 | 8.38 | — | 10.25 | |
| • | TE-3 | 100A | 200A-600V | J | 13.75 | 8.38 | — | 10.25 | |
| • | TF-1 | 200A | No Fuse | — | 5.50 | 11.62 | — | 8.88 | |
| • | TF-2 | 200A | 200A-250V | H, K, R | 11.50 | 11.62 | — | 8.88 | |
| • | TF-2 | 200A | 200A-600V | H, K, R | 14.00 | 11.62 | — | 8.88 | |
| • | TF-2 | 200A | 200A-600V | J | 10.12 | 11.62 | — | 8.88 | |
| • | TF-3 | 200A | 400A-600V | J | 14.50 | 11.62 | — | 8.88 |
Square D Class 9422 Variable Depth Operators (Circuit Breakers)
| Fits Enclosure Depth · 8 | Fits Enclosure Depth · 12 | General Electric Mechanism For Switch | Amp Ratingthtd> | Frame Size | Space Occupied · L | Space Occupied · M | When K=8.62 P | When K=11.62 P |
|---|---|---|---|---|---|---|---|---|
| • | • | RG-1 | 75A | GJL | 3.53 | 3.74 | 7.47 | 10.47 |
| • | • | RG-1 | 100A | GJL | 3.53 | 3.74 | 7.47 | 10.47 |
| • | • | RN-1 | 100A | FAL,FHL | 5.12 | 5.25 | 7.62 | 10.62 |
| • | • | RP-1 | 250A | KAL,KHL | 7.12 | 5.62 | 8.38 | 11.38 |
| • | RR-1 | 400A | LAL, LHL, Q4L | 7.62 | 8.75 | — | 7.00 |
Square D Class 9422 Disconnect Switches (Cable Mechanism 9422-CFT30 and 9422A-1 Handle Mechanism)
| Fits Enclosure Depth · C=8 | Fits Enclosure Depth · C=12 | Square D Type Number | Amp Rating | Fuse Clip | Fuse Class | Disconnect Height "X" | Disconnect Width "Y" |
|---|---|---|---|---|---|---|---|
| • | • | TCN-30 | 30A | No Fuse | — | 5.90 | 6.20 |
| • | • | TCF-30 | 30A | 30A-250V | H, K, R | 7.50 | 6.20 |
| • | • | TCF-33 | 30A | 30A-600V | H, K, R | 10.15 | 6.20 |
| • | • | TCF-33 | 30A | 60A-250V | H, K, R | 8.15 | 6.20 |
| • | • | TCF-33 | 30A | 30A-600V | J | 7.50 | 6.20 |
| • | • | TDN-60 | 60A | No Fuse | — | 5.90 | 6.20 |
| • | • | TDF-60 | 60A | 30A-600V | H, K, R | 10.15 | 6.20 |
| • | • | TDF-60 | 60A | 60A-250V | H, K, R | 8.15 | 6.20 |
| • | • | TDF-63 | 60A | 60A-600V | H, K, R | 10.65 | 6.20 |
| • | • | TDF-63 | 60A | 60A-600V | J | 7.50 | 6.20 |
| • | TEN-10 | 100A | No Fuse | — | 5.90 | 6.20 | |
| • | TEF-10 | 100A | 100A-250V | H, K, R | 10.35 | 6.20 | |
| • | TEF-10 | 100A | 100A-600V | H, K, R | 12.35 | 6.20 | |
| • | TEF-10 | 100A | 100A-600V | J | 10.35 | 6.20 |
Square D Class 9422 Cable Mechanism (Circuit Breakers)
| Fits Enclosure Depth · C=8 | Fits Enclosure Depth · C=12 | Cable Type Switch | Amp · Rating | Frame Type | Circuit Breaker · Height "X" | Circuit Breaker · Width "Y" |
|---|---|---|---|---|---|---|
| • | • | 9422 CGJ30 | 75A | GJL | 4.75 | 3.50 |
| • | • | 9422 CEJ30 | 100A | GJL | 4.75 | 3.50 |
| • | • | 9422 CFA30 | 100A | FAL,FHL | 6.00 | 4.50 |
| • | • | 9422 CKA30 | 250A | KAL,KHL | 8.00 | 4.50 |
| • | 9422 CLA30 | 400A | LAL,LHL,Q4L | 11.00 | 6.00 |
