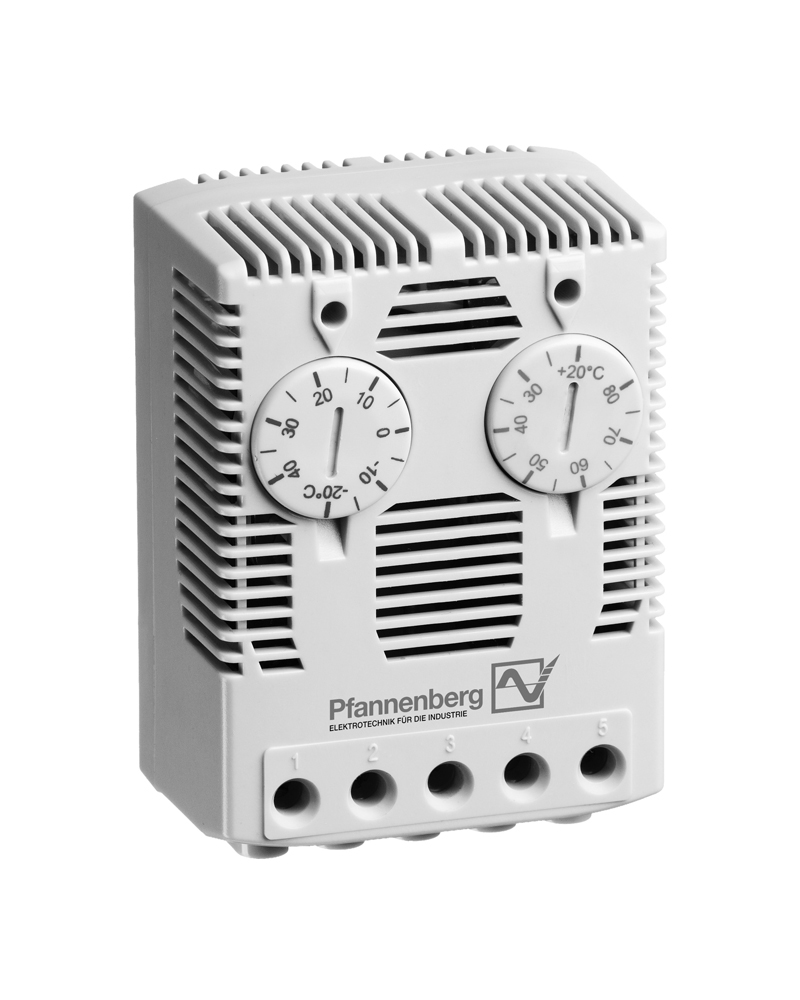

Twin Thermostats SKTD Series
Features
Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)
- ■Designed to provide air temperature control and monitoring in cabinets
- ■Twin thermostats integrates two independently switchable thermostats, unlike thermostats with changeover contacts, connected devices can be switched in different temperature ranges.
- ■Available with N.C/N.O., N.C/N.C., N.O/N.O.
Part Details
| Scale: ( Fahrenheit) · Scale: (Celsius) | Part Number · SKTD541 · SKTD541C | Part Number · SKTD542 · SKTD542C | Part Number · SKTD543 · SKTD543C |
|---|---|---|---|

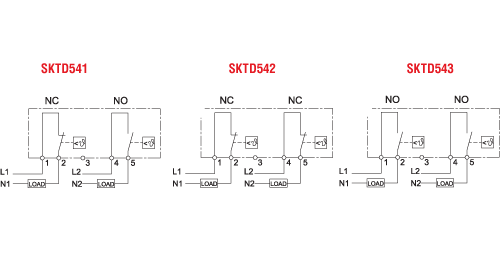

| Type of contact: | N.C. / N.O. with spring contact | N.C. / N.C. with spring contact | N.O. / N.O. with spring contact |
| Suitable for the operation of | Fan and Heater | Heaters and Alarms | Fans and Alarms |
| Switching tolerance: | + - 4K | + - 4K | + - 4K |
| Switching Capacity: | N.C. 240 VAC /10A N.O. 120 VAC / 15 A DC max 30watts | N.C. 240 VAC /10A N.O. 120 VAC / 15 A DC max 30watts | N.C. 240 VAC /10A N.O. 120 VAC / 15 A DC max 30watts |
| Adjustment Range: | 32-140° F / 0-60° C | 32-140° F / 0-60° C | 32-140° F / 0-60° C |
| Connection: | Screw terminal for AWG 14 / (2.5mm2) | Screw terminal for AWG 14 / (2.5mm2) | Screw terminal for AWG 14 / (2.5mm2) |
| Mounting: | Clip mounting on 35 mm DIN rails | Clip mounting on 35 mm DIN rails | Clip mounting on 35 mm DIN rails |
| Dimension | Height 3.17" (80.5mm) Width 2.32" (59mm) Depth 1.5" (38mm) | Height 3.17" (80.5mm) Width 2.32" (59mm) Depth 1.5" (38mm) | Height 3.17" (80.5mm) Width 2.32" (59mm) Depth 1.5" (38mm) |
| Housing: | Flame retardant plastic UL94VO | Flame retardant plastic UL94VO | Flame retardant plastic UL94VO |
| Color: | Light Gray RAL7035 | Light Gray RAL7035 | Light Gray RAL7035 |
| Protection: | IP20 | IP20 | IP20 |
| Approval: | UL Recognized Component, cUL Recognized Component, CE | UL Recognized Component, cUL Recognized Component, CE | UL Recognized Component, cUL Recognized Component, CE |
